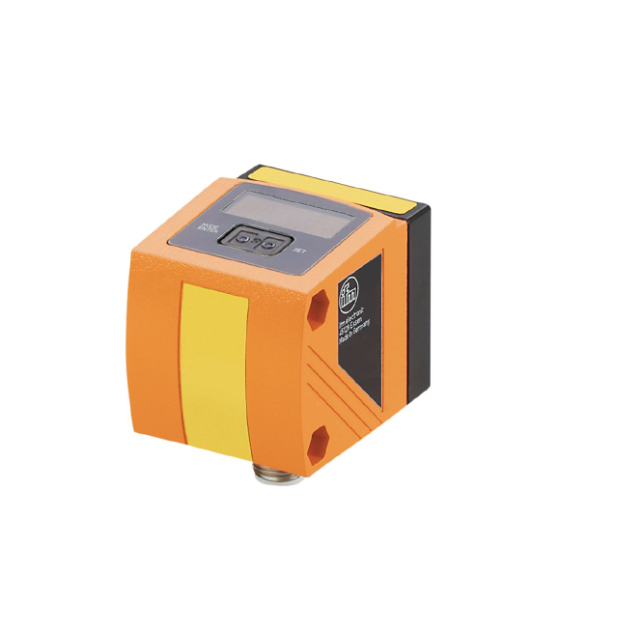

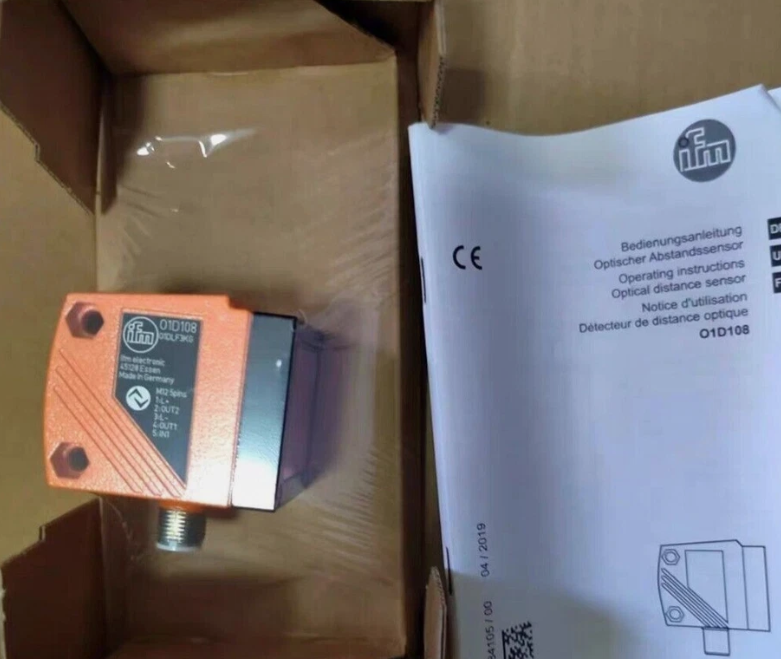

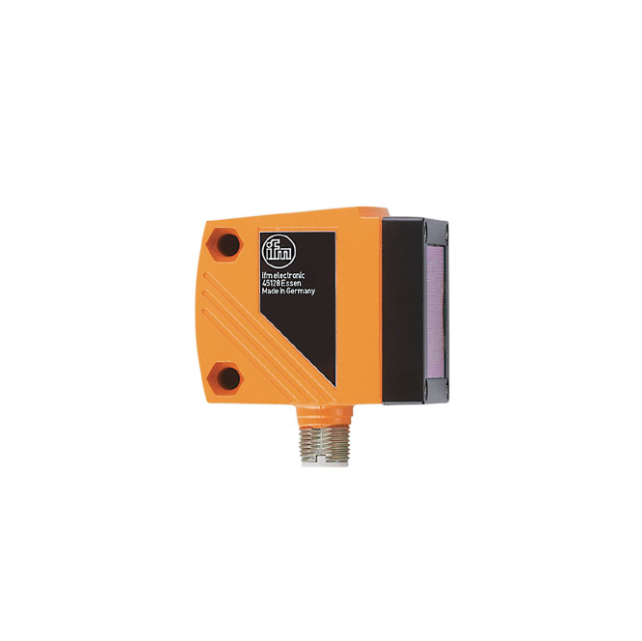

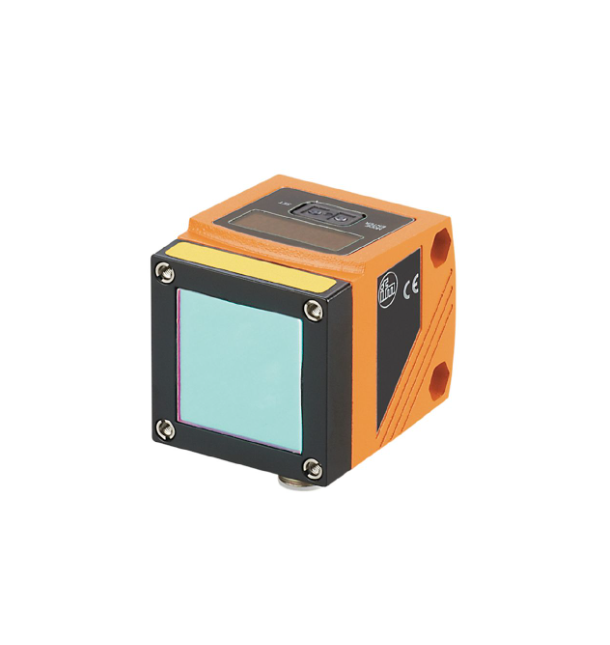

IFM O1D108 Photoelectric Distance Sensor O1DLF3KG/IO-LINK 01D108 Photoelectric sensors
| Place of Origin | Germany |
|---|---|
| Brand Name | IFM |
| Certification | / |
| Model Number | O1D108 |
| Minimum Order Quantity | 1pc |
| Price | USD $220/PC |
| Packaging Details | original packing |
| Delivery Time | 1-3 working days |
| Payment Terms | T/T |
| Supply Ability | 1000pc/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Protection Class | 2 | Housing | Rectangular |
|---|---|---|---|
| Application[m] | 0.2...100 | Operating Voltage[V] | 18...30 DC; (cULus - Class 2 Source Required) |
| Current Consumption[mA] | < 150 |
Product Description
Product characteristics
| Laser protection class | 2 |
| Housing | rectangular |
Application
| Application[m] | 0.2...100 |
Electrical data
| Operating voltage[V] | 18...30 DC; (cULus - Class 2 source required) |
| Current consumption[mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime[h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
Outputs
| Total number of outputs | 2 |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (programmable) |
| Max. current load per output[mA] | 200 |
| Number of analog outputs | 1 |
| Analog current output[mA] | 4...20; (IEC 61131-2) |
| Max. load[Ω] | 250 |
| Analog voltage output[V] | 0...10; (IEC 61131-2) |
| Min. load resistance[Ω] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Max. light spot width[mm] | 25 |
| Max. light spot height[mm] | 25 |
| Light spot dimensions refer to | 18 m |
| Background suppression[m] | < 100 |
Measuring/setting range
| Measuring range[m] | 0.2...18; (white paper 200 x 200 mm 90 % remission) |
| Sampling rate[Hz] |
1...33
|
