Dwyer 1005W-B3-D,1006W-B3-D,1007W-B3-D Weatherproof Pressure Switch

  • Dwyer 1005W-B3-D,1006W-B3-D,1007W-B3-D Weatherproof Pressure Switch
  • Dwyer 1005W-B3-D,1006W-B3-D,1007W-B3-D Weatherproof Pressure Switch
  • Dwyer 1005W-B3-D,1006W-B3-D,1007W-B3-D Weatherproof Pressure Switch
  • Dwyer 1005W-B3-D,1006W-B3-D,1007W-B3-D Weatherproof Pressure Switch
Place of Origin USA
Brand Name Dwyer
Certification CCC,CE
Model Number 1005W-B3-D,1006W-B3-D,1007W-B3-D
Minimum Order Quantity 1
Price USD$990/PC
Packaging Details carton
Delivery Time 4-6 weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Pressure Switch Range 25-200 Psig
Pressure Chamber 316 Stainless Steel Switch Type SPDT Snap Switch
Measuring Media Air Voltage 220V
Leave a Message
Product Description

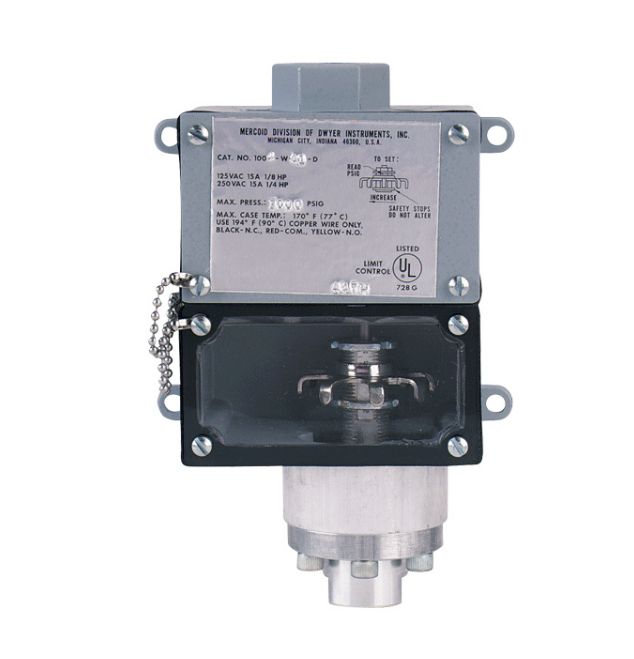

Dwyer 1005W-B3-D,1006W-B3-D,1007W-B3-D Pressure Switch



SPECIFICATIONS

Wetted Materials: See pressure chamber and diaphragm material in model chart.

Temperature Limits: -30 to 170°F (-35 to 77°C).

Pressure Limit: 3000 psig (206.8 bar).

Enclosure Rating: Weatherproof, meets NEMA 4X (IP66).

Switch Type: SPDT snap switch.

Electrical Rating: 15A @ 125/250 VAC resistive.

Electrical Connections: Screw type.

Conduit Connection: 3/4˝ female NPT.

Process Connection: 1/4˝ female NPT.

Mounting Orientation: Any position.

Set Point Adjustment: Internal thumbwheel.



Dwyer 1005W-B3-D,1006W-B3-D,1007W-B3-D Weatherproof Pressure Switch 0
