UNI-T Unit Thermal Imager UTi165A Temperature Thermal Imaging Camera Industry Temperature Tester

  • UNI-T Unit Thermal Imager UTi165A Temperature Thermal Imaging Camera Industry Temperature Tester
  • UNI-T Unit Thermal Imager UTi165A Temperature Thermal Imaging Camera Industry Temperature Tester
  • UNI-T Unit Thermal Imager UTi165A Temperature Thermal Imaging Camera Industry Temperature Tester
  • UNI-T Unit Thermal Imager UTi165A Temperature Thermal Imaging Camera Industry Temperature Tester
Place of Origin China
Brand Name uni-t
Certification /
Model Number UTi165A
Minimum Order Quantity 1pc
Price USD 160/PC
Packaging Details original packing
Delivery Time 1-3 working days
Payment Terms T/T
Supply Ability 1000pc/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IR Resolution (Pixels) 160×120 Display 2.8” TFT LCD (320×240)
Field Of View 56°×42° Focus Focus Free
Temperature Measurement Range -10℃~400℃
Highlight

UNI-T thermal imaging camera

,

industrial temperature tester

,

UTi165A thermal imager
Leave a Message
Product Description

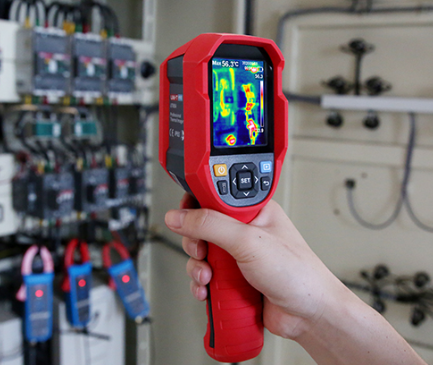

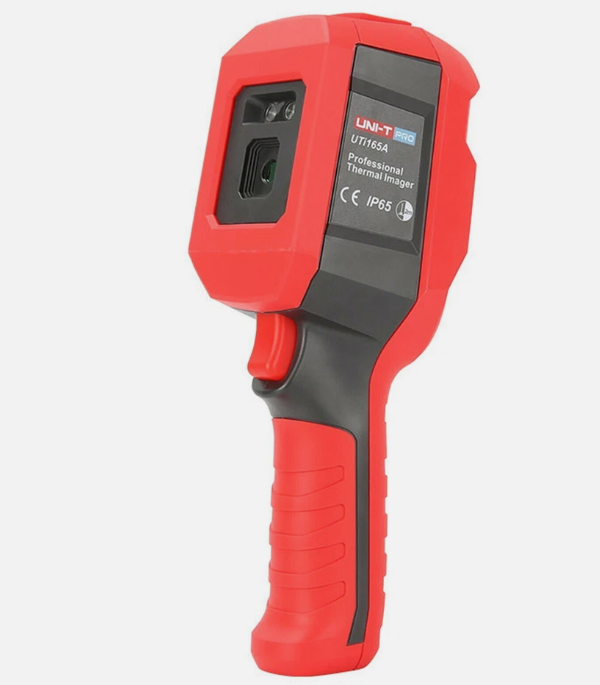

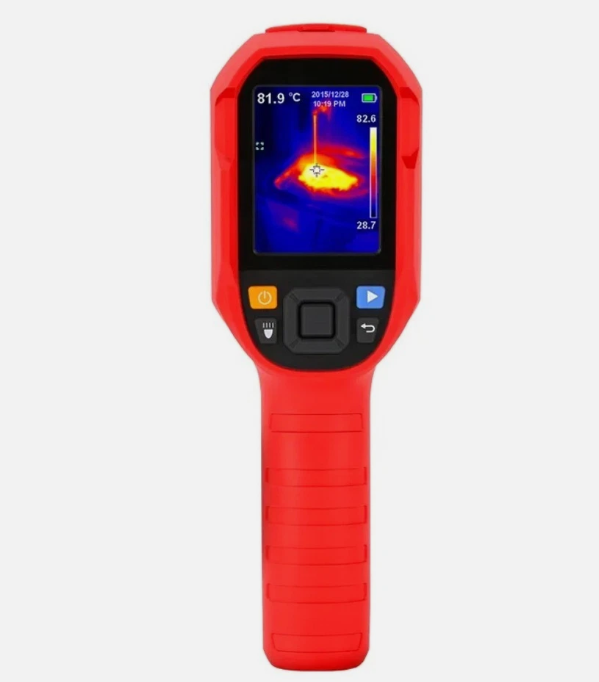

Heavy Duty Thermal Camera

UTi165A is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance, with 160×120 pixels IR resolution which can automatically track the objective’s temperature from -10℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.

Features :

  • Durable and user-friendly
  • 8” TFT display screen (320×240 Pixels)
  • IR resolution: 160×120
  • Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)
  • LED flashlight
  • PC software analysis
  • Rechargeable Li-ion battery
  • 1/4” tripod mounting hole
  • IP65
  • 2m drop proof



Product Specifications of UTi165A

Technical Data
IR resolution (Pixels) 160×120
Display 2.8” TFT LCD (320×240)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤50mk
Spatial resolution(IFOV) 6.1mrad
Frame rate ≤9Hz
Spectral range 8~14µm
Focus Focus free
Temperature measurement range -10℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 5
(White hot, Red hot, Ice blue, Rainbow, Ironbow)
Image modes Thermal
Hi/Lo temperature alarm Icon,LED flashlight
PC software analysis √
General Characteristics
Battery Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time ≥ 6 hours
USB Type-C
IP rating IP65
Drop proof 2m
Storage Up to 32GB Micro SD card
Image/Video storage format BMP
Certificates CE,FCC,RoHS
Product net weight 490g
Product size 236mm×75.5mm×86mm



Applications of UTi165A

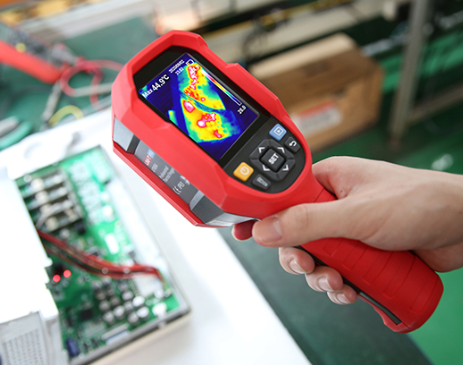

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
