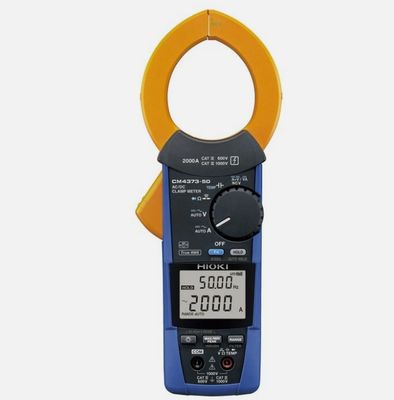

Hioki CM4373-50 True RMS Clamp Meter with 2000 A AC/DC Range IP54 Enclosure and 600 V CAT IV Safety Rating

  • Hioki CM4373-50 True RMS Clamp Meter with 2000 A AC/DC Range IP54 Enclosure and 600 V CAT IV Safety Rating
  • Hioki CM4373-50 True RMS Clamp Meter with 2000 A AC/DC Range IP54 Enclosure and 600 V CAT IV Safety Rating
  • Hioki CM4373-50 True RMS Clamp Meter with 2000 A AC/DC Range IP54 Enclosure and 600 V CAT IV Safety Rating
  • Hioki CM4373-50 True RMS Clamp Meter with 2000 A AC/DC Range IP54 Enclosure and 600 V CAT IV Safety Rating
Place of Origin Japan
Brand Name Hioki
Certification /
Model Number CM4373-50
Minimum Order Quantity 1pc
Price USD 300/PC
Packaging Details original packing
Delivery Time 1-3 working days
Payment Terms T/T
Supply Ability 1000pc/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
DC Current Range 600.0 A/2000 A, Basic Accuracy: ±1.3% Rdg. ±0.3 A (600 A Range) AC Current Range 600.0 A/2000 A (10 Hz To 1 KHz, True RMS), Basic Accuracy 45 - 66 Hz: ±1.3% Rdg. ±0.3 A (at 600 A)
Crest Factor 600.0 A Range: 3 Or Less 2000 A Range: 2.84 Or Less Voltage Detection Hi: 40 V To 600 V AC, Lo: 80 V To 600 V AC, 50/60 Hz
MOQ 1PC
Highlight

Hioki true RMS clamp meter

,

AC/DC clamp meter 2000A

,

clamp meter with warranty
Leave a Message
Product Description

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4373-50 is a 2000 A True RMS clamp meter that features stronger jaws, IP54 dustproof and waterproof enclosure to enable professionals to work quickly in tough situations including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 2000 V (*1) is ideal for inspection of solar PV system.





Key Features

  • CAT IV 600 V, CAT III 1000 V
    When using P2010: CAT III 2000 V, CAT IV 1000 V
  • Measure DC voltages of up to 2000 V (*1) for open voltage inspections of solar panels
  • Simultaneously measure inrush current in RMS and crest values
  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file (*2)
  • Harmonic analysis from 1st to 30th order with GENNECT Cross (*2)
  • Automatic AC/DC function helps boost work efficiency



DC Current range 600.0 A/2000 A, Basic accuracy: ±1.3% rdg. ±0.3 A (600 A range)
AC Current range 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz: ±1.3% rdg. ±0.3 A (at 600 A)
Crest factor 600.0 A range: 3 or less
2000 A range: 2.84 or less
DC+AC Current range 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (at 600 A)
DC Voltage range 600.0 ｍV to 1000 V (When using P2010: 600.0 V to 2000 V)
AC Voltage range 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz: ±0.9% rdg. ±0.003 V (at 6 V)
DC+AC Voltage range 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45 - 66 Hz: ±1.0% rdg. ±0.013 V (at 6 V)
Resistance range 600.0 Ω to 6.000 MΩ, 5 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω)
Capacitance range 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF)
Frequency range 9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz)
Temperature (K) -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C
Voltage detection Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz
Harmonic levels [With Z3210 installed] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross.
Other functions DC power, Continuity check, Diode check, Automatic AC/DC detection, Pass/fail judgement function of DC A and DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Low-pass filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment, etc.
Dustproof, waterproof IP20 (Voltage measurement in a completely dry condition. When jaw closes)
IP54 (While in storage)
Power supply LR03 Alkaline battery ×2
Continuous use: 40 hr (without Z3210 installed), 24 hr. (with Z3210 installed and using wireless communications)
Other conditions: 100 A AC measurement, backlight off, 23°C reference value
Core jaw diameter φ55 mm (2.17 in), Jaw dimension: 92 mm (3.62 in) W×18 mm (0.71 in) D
Dimensions and mass 65 mm (2.56 in) W×250 mm (9.84 in) H×35 mm (1.38 in) D mm, 530 g (18.7 oz)

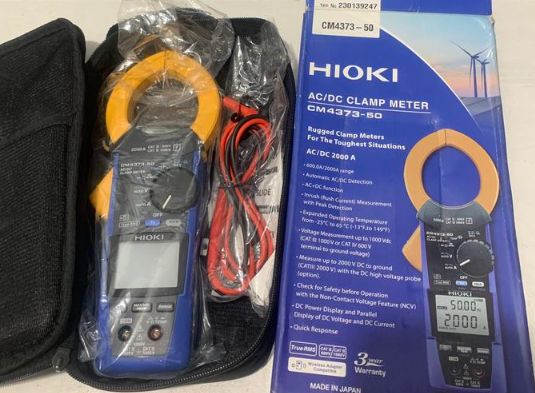

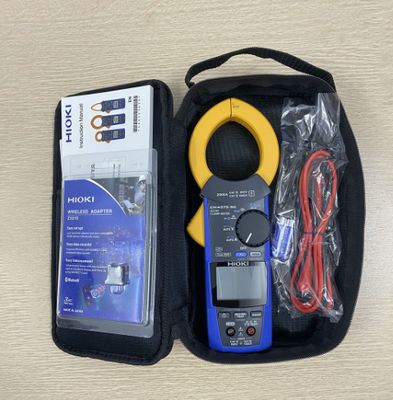

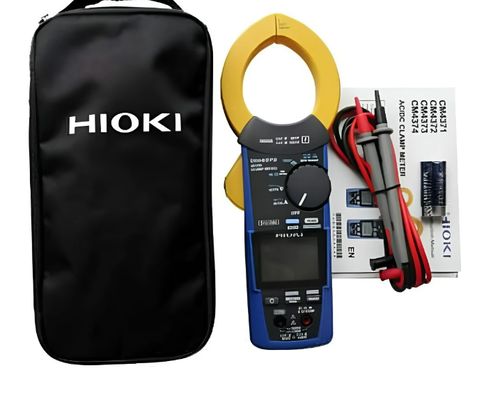

Included accessories Test Lead L9300, Carrying Case C0203, LR03 Alkaline battery ×2, Instruction Manual×2, Operating Precautions ×1
