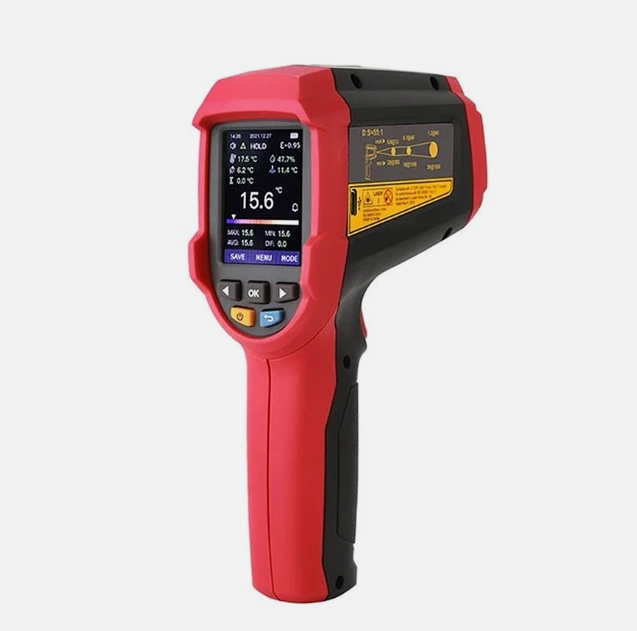

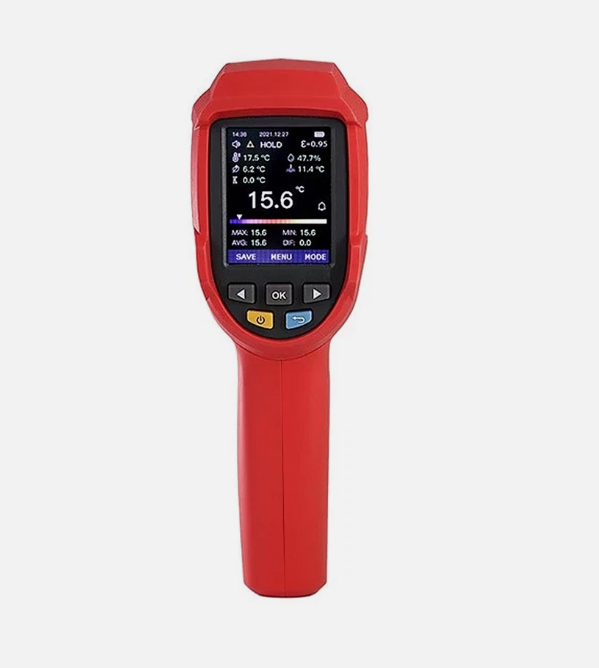

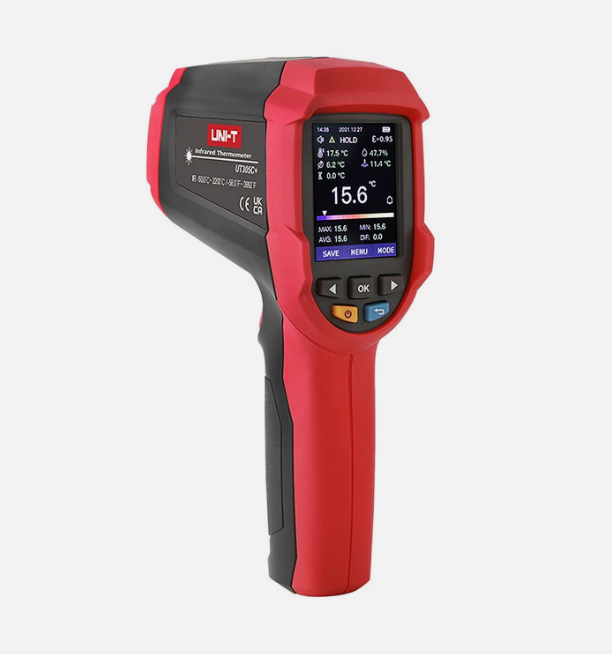

UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement

  • UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
  • UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
  • UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
  • UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement
Place of Origin China
Brand Name uni-t
Certification /
Model Number UT305+
Minimum Order Quantity 1pc
Price USD 260 UNIT
Packaging Details original packing
Delivery Time 1-3 working days
Payment Terms T/T
Supply Ability 1000pc/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Range -50°C~2200°C Relative Humidity 10%RH~90%RH
Type K Thermocouple -50°C~1370°C (-58.0℉～2498℉) Spectral Response 8µm~14µm
Display Resolution 0.1℃（0.1℉）
Leave a Message
Product Description

Specifications of UT305+ Series Infrared Thermometers


Specifications UT305A+ UT305C+
Measurement range Infrared temperature measurement -50°C~1850°C



(-58.0℉～3362℉)

 -50°C~2200°C



(-58.0℉～3992℉)
The environment temperature measurement -10°C~50°C (14℉～122℉)
Relative humidity 10%RH~90%RH
Type K thermocouple -50°C~1370°C (-58.0℉～2498℉)
Accuracy Infrared temperature measurement -50°C~0°C, ±(1.0℃+0.1℃/℃)



-58℉~32℉, ±(2.0℉+0.1℉/℉)

0°C~2200°C, ±1.0℃ or ±0.01×t℃ (Which is greater)
32℉~3992℉, ±2.0℉ or ±0.01×t℉ (Which is greater)
The environment temperature measurement -10°C~0°C (14℉~32℉), ±1.0°C (±2.0℉) 0°C~40°C (32℉~104℉), ±0.5℃ (±1.0℉)



40°C~50°C (104℉~122℉), ±1.0℃ (±2.0℉ )
Relative humidity ±5%RH
Type K thermocouple ±(0.005×t+1.5)℃, ±(0.005×t+3.0)℉
Certification CE UKCA
Diastance ratio(D:S) 55:1
Emissivity 0.1~1.0 (adjustable)
Spectral response 8µm~14µm
Repeatability of infrared temperature measurement ±0.005×t℃(℉)or 1℃(2℉) (Which is greater)
Display resolution 0.1℃(0.1℉)
Unit conversion ℃ / ℉
Laser point Single laser, output < 1 mW, class II
Data storage 999 groups
Data output format PDF,CSV
Data communication or charging interface Type-C USB
Battery Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery
Charging time No more than 3 hours
Continuous working time Work continuously for no less than 20 hours on full charge
Buzzer alarm √
Trigger lock function and reservation measurement √
Real time, date √
LCD type 2.4 inch TFT LCD 320 * 240 pixels
temperature coefficient ±0.1℃/℃ or ±0.1%℃/℃, ±0.1℉/℉ or ±0.1%℉/℉(Which is greater)
Work at an altitude of No more than 2000 meters
Drop test 1m
Standard k-type thermocouple probe (bead type)
Measurement range -40°C to 260°C (-40°F to 500°F)
Accuracy 0.075× T (t is measured temperature)
Lenth 1 m (40 in) long K type thermocouple cable with standard micro thermocouple connector and bead probe
General Characteristics
Power Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery
LCD screen size 37mm x 49mm
Product color red and gray
Net weight 375 g
Product size 205 x 65 x 124 mm
Standard accessories Type-C data cable, Type K thermocouple probe (bead Type)

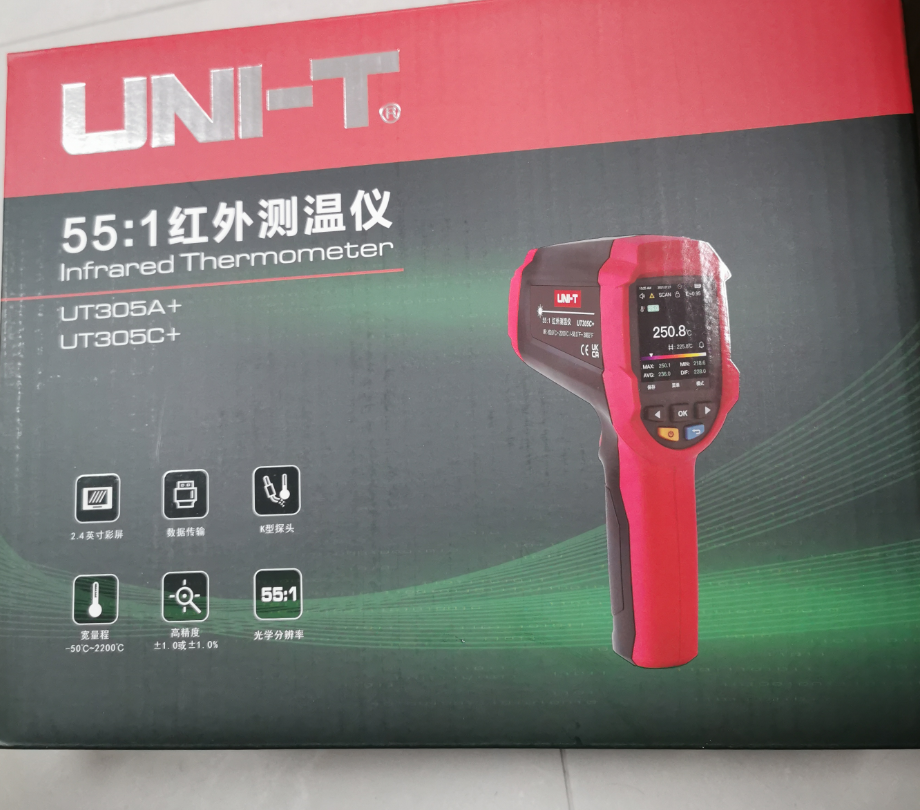

Standard packing Gift box, tool box, instruction manual, warranty card
Standard packing quantity 1 pc
Standard packing size 365*160*300 mm






UNI-T UT305C+ High-Temperature Infrared Thermometer: Professional-Grade Non-Contact Temperature Measurement 0
