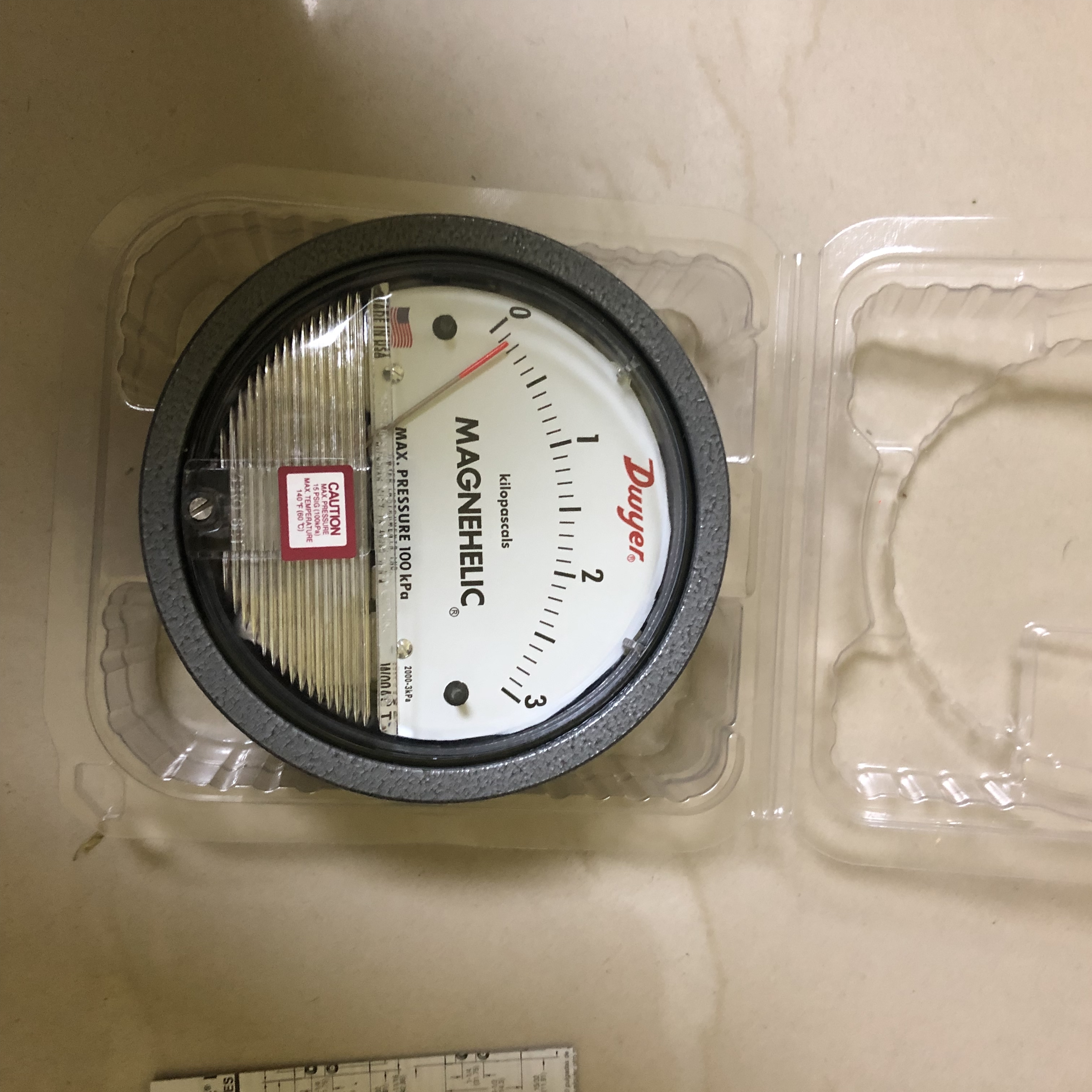

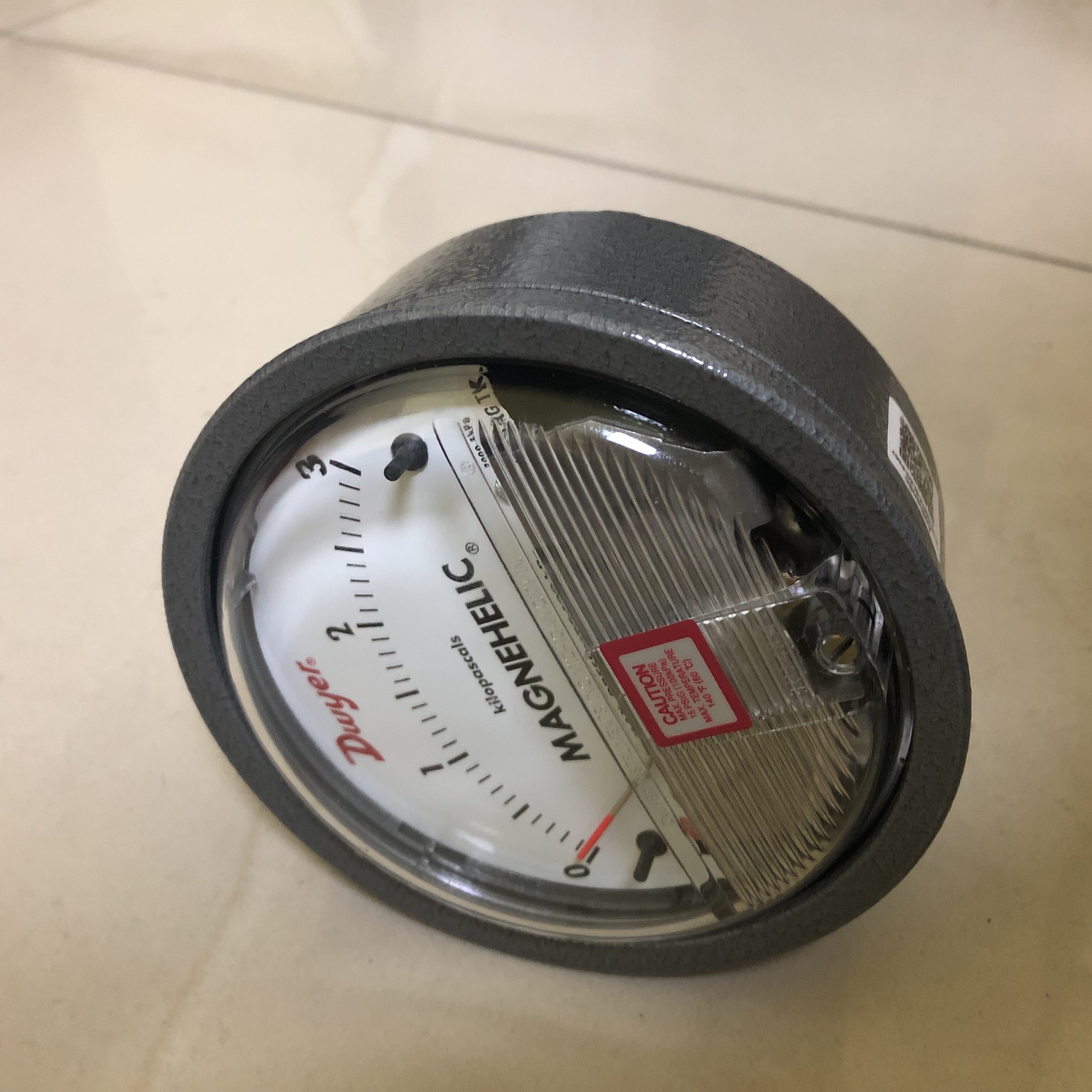

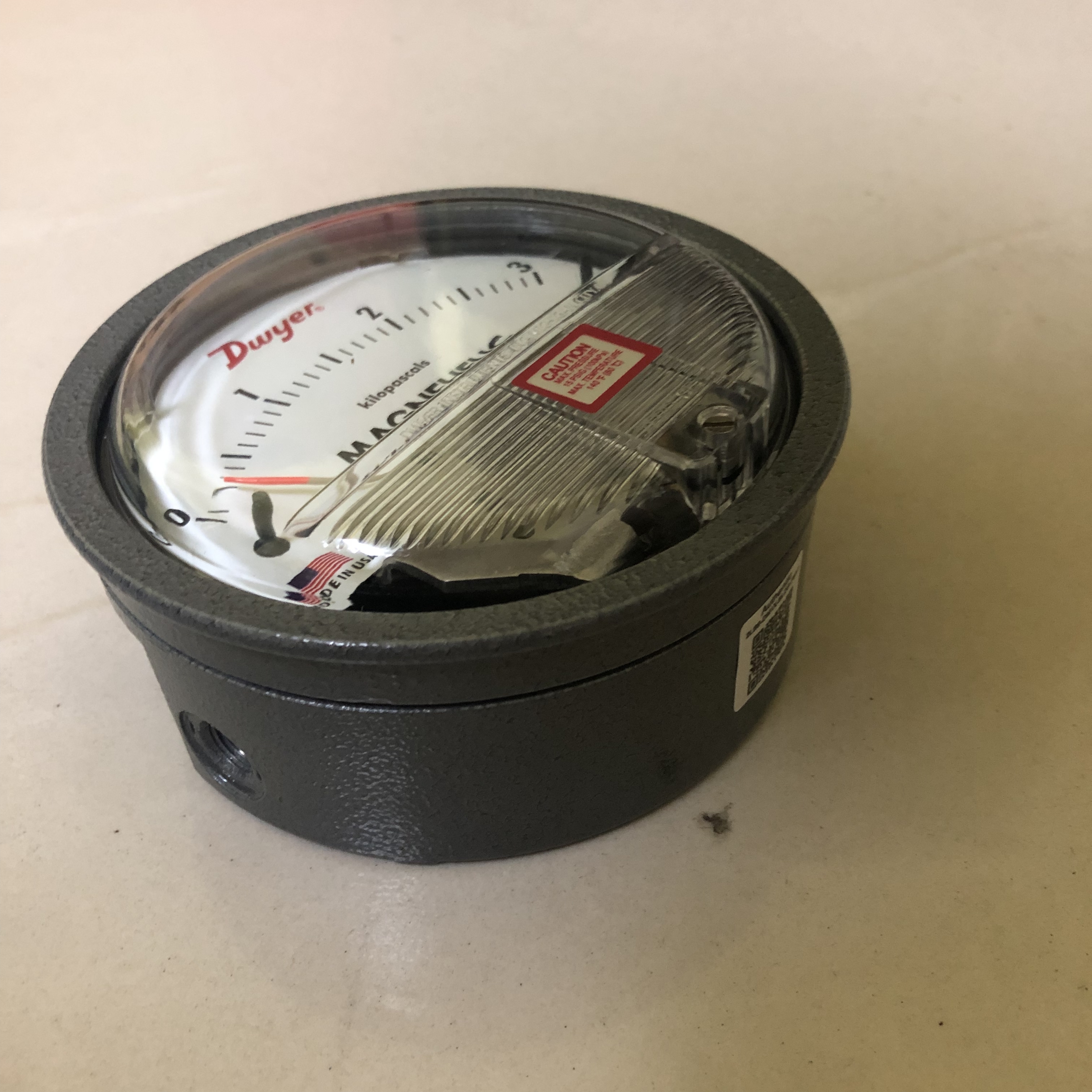

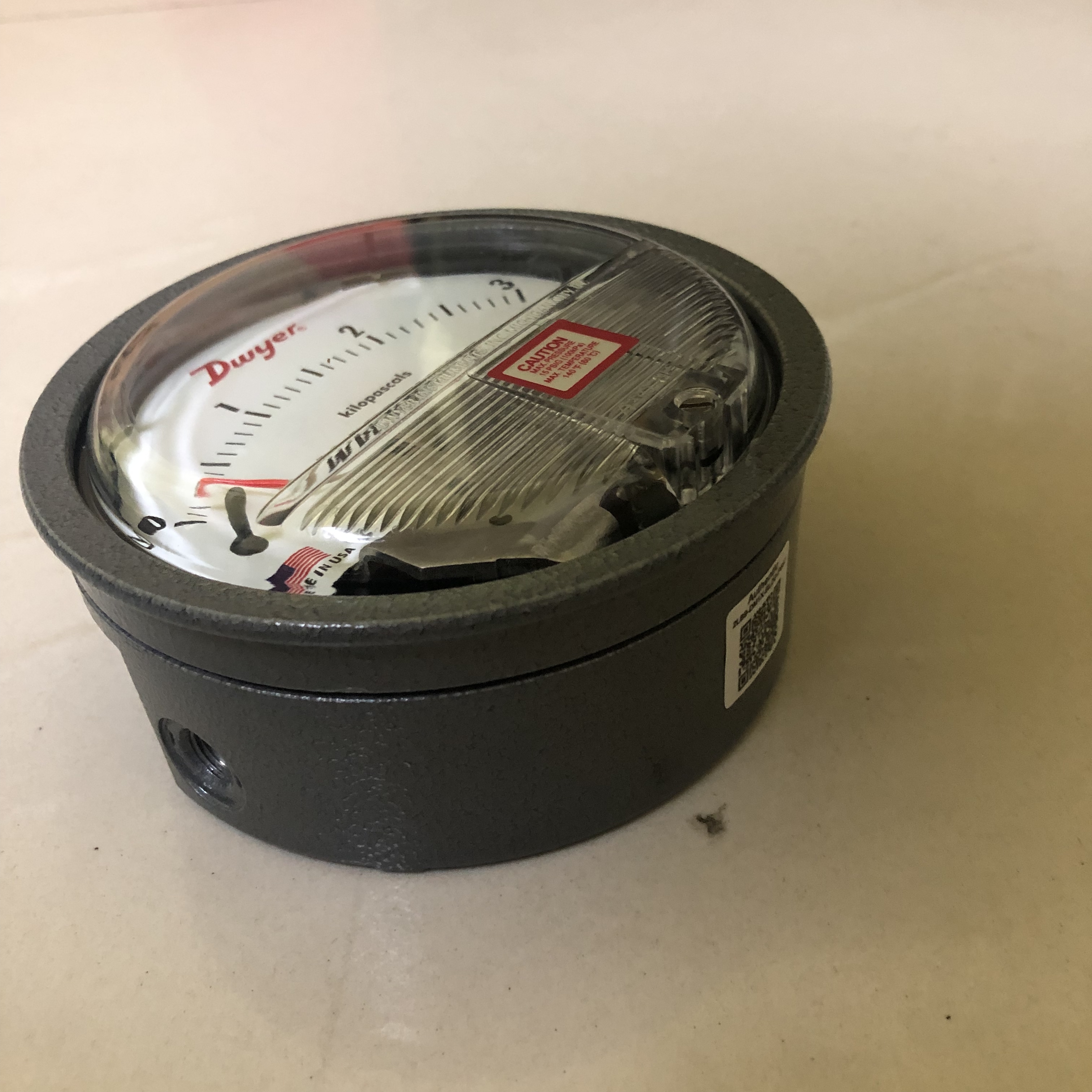

Dwyer 2000 Series Magnehelic Differential Pressure Gauge 0-3KPa From the United States
| Place of Origin | USA |
|---|---|
| Brand Name | Dwyer |
| Certification | - |
| Model Number | 2000 Series Magnehelic |
| Minimum Order Quantity | 1 |
| Price | USD35/PC |
| Packaging Details | Original |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight (kg) | 0.55KG | Brand Name | Dwyer |
|---|---|---|---|
| Usage | Igniting | Product Name | 2000-3Kpa |
Product Description
Product Overview
- Accuracy Detail
± 2% (-HA model ± 1) of FS (± 3% (-HA ± 1.5%) on -0, -100PA, -125PA, -10MM and ± 4% (-HA ± 2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
- Dial Dia4 in
- Enclosure RatingsIP67
- MaterialsAluminum, Acrylic
- Materials, WettedConsult Factory
- Media CompatibilityAir, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
- Mounting OrientationVertical Diaphragm
- Pressure Limits-20 inHg to 15 psig
- Measurement Pressure TypeDifferential

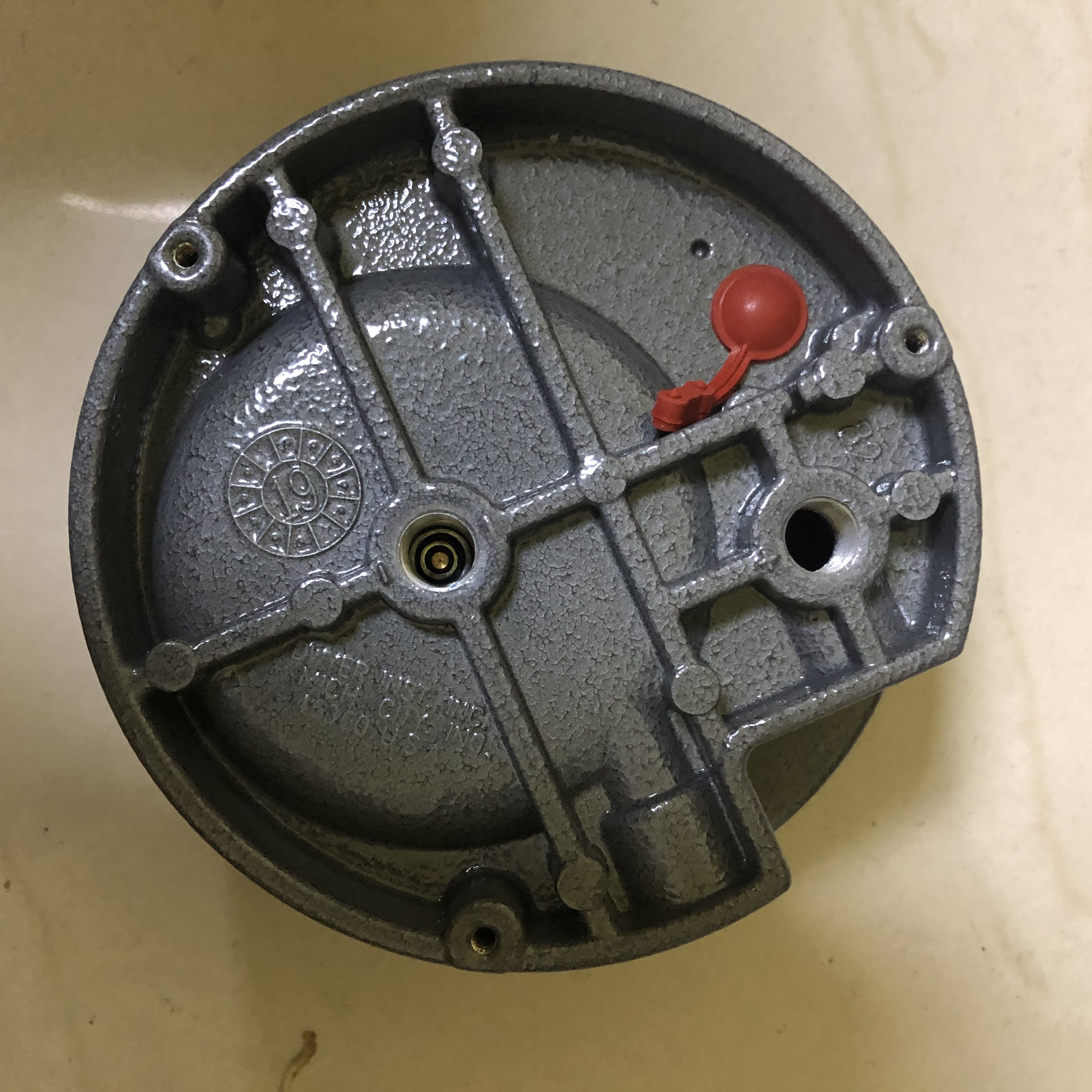

- Process Connection Note1/8˝ female NPT duplicate high and low pressure taps - one pair side and one pair back.
- Process Connection Size1/8 in
- Process Connection TypeNPT Female
- Safety FeaturesRelief plug opens at approximately 25 psig (1.72 bar), standard gages only.
- Weight510 g
