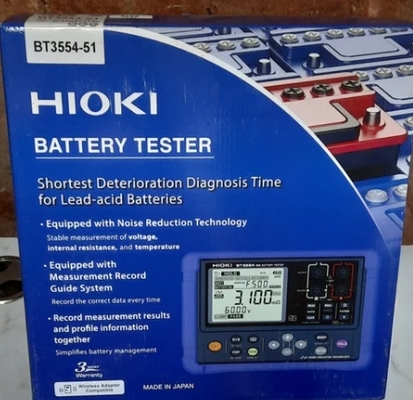

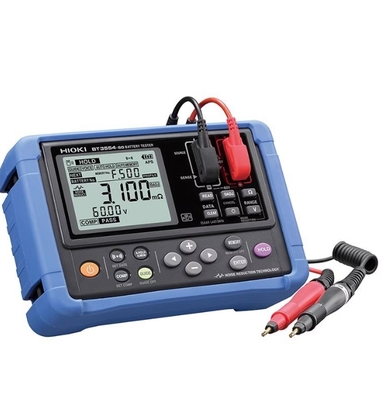

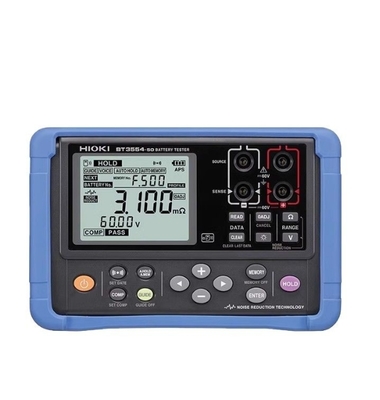

HIOKI BT3554-51 BT3554-52 Portable Battery Tester , 9465-10 Straight Pin Type Lead

  • HIOKI BT3554-51 BT3554-52 Portable Battery Tester , 9465-10 Straight Pin Type Lead
  • HIOKI BT3554-51 BT3554-52 Portable Battery Tester , 9465-10 Straight Pin Type Lead
  • HIOKI BT3554-51 BT3554-52 Portable Battery Tester , 9465-10 Straight Pin Type Lead
  • HIOKI BT3554-51 BT3554-52 Portable Battery Tester , 9465-10 Straight Pin Type Lead
  • HIOKI BT3554-51 BT3554-52 Portable Battery Tester , 9465-10 Straight Pin Type Lead
  • HIOKI BT3554-51 BT3554-52 Portable Battery Tester , 9465-10 Straight Pin Type Lead
Place of Origin Japan
Brand Name HIOKI
Certification /
Model Number BT3554-51
Minimum Order Quantity 1pc
Price USD 1700/PC
Packaging Details original packing
Delivery Time 1-3 working days
Supply Ability 1000pc/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Battery Tester Absolute Max. Input Voltage 60 V DC Max. (No AC Input)
Measurement Time 100 Ms Response Time Approx. 1.6 Sec.
Highlight

HIOKI BT3554-52 Battery Tester

,

Portable Battery Tester

,

HIOKI BT3554-51 Battery Tester
Leave a Message
Product Description

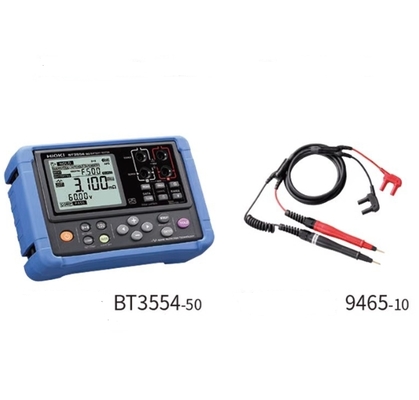

　 BT3554-50 BT3554-51 BT3554-52
Resistance measurement range 3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges
Accuracy: ±0.8 % rdg ±6 dgt (3 mΩ range: ±1.0 % rdg ±8 dgt)
Testing source frequency: 1 kHz ±30 Hz
With function for avoiding noise frequency enabled: 1 kHz ±80 Hz
Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range)
Open terminal Voltage: 5 V peak
Voltage measurement range ± 6 V (max. display ±6.000 V, resolution: 1 mV) to ± 60 V (max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg ±6 dgt
Temperature measurement accuracy Measurement range: -10°C to 60°C (14°F to 140°F), Maximum display: 60.0°C (140.0°F), Resolution 0.1°C (0.1°F), Measurement accuracy*: ±1.0°C (±1.8°F)
* When using the Clip Type Lead with Temperature Sensor 9460.
* When using the Temperature Probe 9451, add ±0.5°C (±0.9°F) (cable length: 1.5 m [59.1"]).
* When using the Temperature Probe 9451S, add ±0.5°C (±0.9°F) (cable length: 0.1 m [3.94"]).
BT3554-50 standalone accuracy with simulated input: ±0.5°C (±0.9°F)
Absolute max. input voltage 60 V DC max. (No AC input)
Measurement time 100 ms
Response time Approx. 1.6 sec.
Comparator Compares measured values with set threshold values to make judgments and reports them to the user.
Judgment notification method: Results are displayed as shown below (segment) and beeping tones sound
When the Voltage value (high): Resistance value (low)= PASS, Resistance value (medium)= WARNING, Resistance value (high)= FAIL
When the Voltage value (low): Resistance value (low)= WARNING, Resistance value (medium)= WARNING, Resistance value (high)= FAIL
If the judgment result is WARNING or FAIL, the audio tone is accompanied by a red backlight.
User-selectable voltage judgment method: ABS (absolute value judgment), POL (polarity judgment )
Savable settings: 200 tables
