Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches

  • Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches
  • Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches
  • Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches
  • Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches
  • Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches
Place of Origin USA
Brand Name Dwyer
Certification -
Model Number ADPS-03-2-N
Minimum Order Quantity 1
Price USD20/PC
Packaging Details Original
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number ADPS-08-2-N Application General
Material Standard Warrany 1 Year
Highlight

ADPS-03-2-N Differential Pressure Switch

,

Filter Air Differential Pressure Switch

,

ADPS-05-2-N Differential Pressure Switch
Leave a Message
Product Description
Product Overview
  • ApplicationsFilter Monitoring, Fluid Measurement and Control, HVAC
  • Enclosure RatingsIP54, NEMA Type 13
  • Materials, WettedNylon 6.6, POM, Silicone
  • Mechanical Life>10^6 cycles
  • Media CompatibilityAir, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
  • Mounting OrientationVertical with Downward Pressure Ports
  • Operating Temperature, Max185 °F
  • Operating Temperature, Min-4 °F
  • Measurement Pressure TypeDifferential
  • Process Connection Note5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing
  • Process Connection Size5/16 in
  • Process Connection TypeBarbed Fitting
  • Proof PressureUp to 40 inH2O
  • Storage Temperature, Max185 °F
  • Storage Temperature, Min-40 °F
  • Switch NoteMax. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min
  • Switch Rating1.5 A/0.4 A @ 250 Vac
  • Switch TypeSPDT NO/NC, Selectable
  • Weight125 g

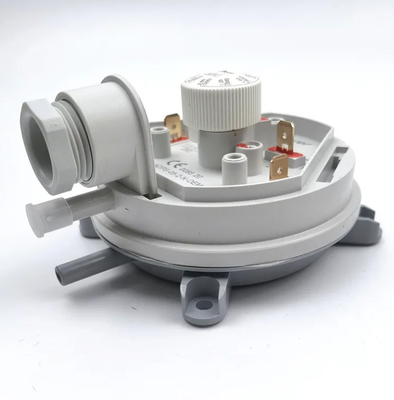

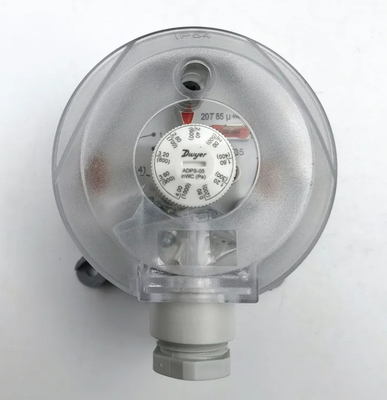

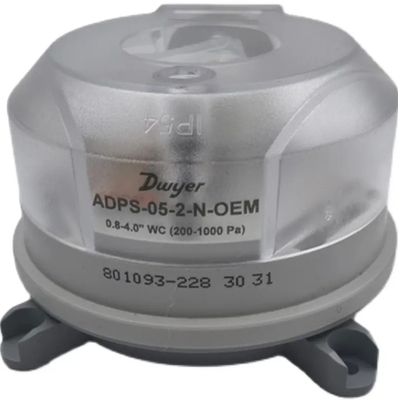

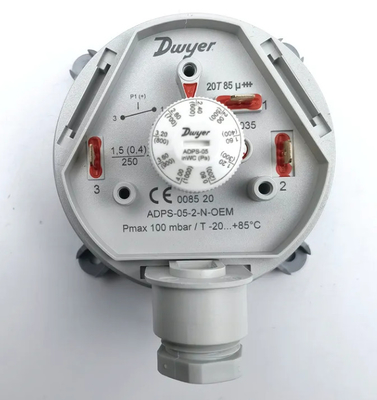

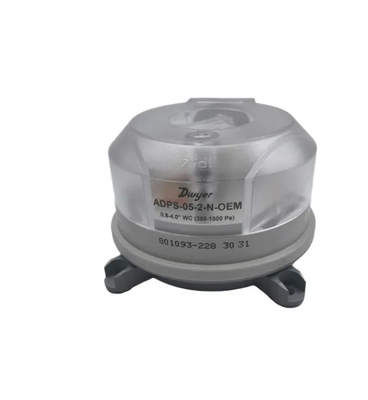

The Series ADPS/EDPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gage. The ADPS/EDPS is available with settings from 0.08 in w.c. (20 Pa) up to 20 in w.c. (5000 Pa). The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases. Series EDPS models meet UL508 and are constructed of plenum rated plastics. The compact size, adjustment knob and low cost make the ADPS/EDPS the perfect choice for HVAC applications.Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches 0Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches 1Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches 2Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches 3Dwyer Differential Pressure Switch ADPS-03-2-N/ADPS-05-2-N Filter Air 20-5000PA Range Controls 5000PA Pressure Switches 4
