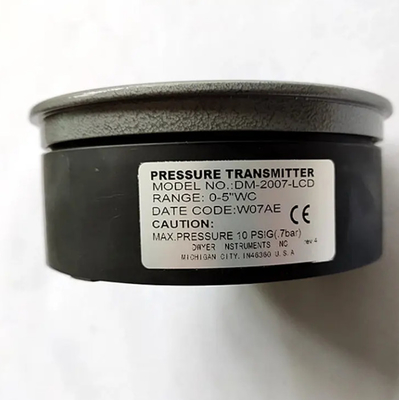

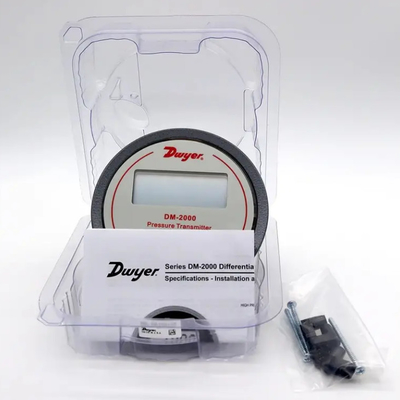

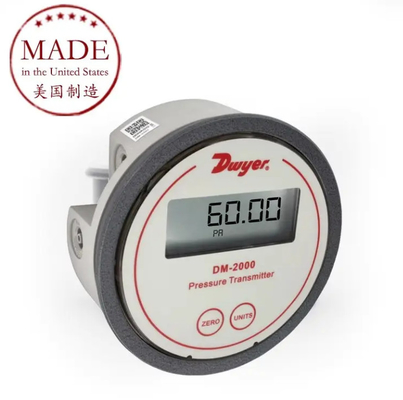

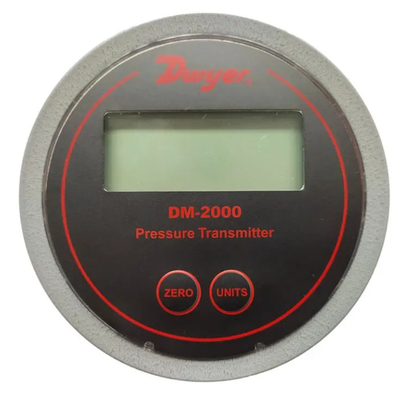

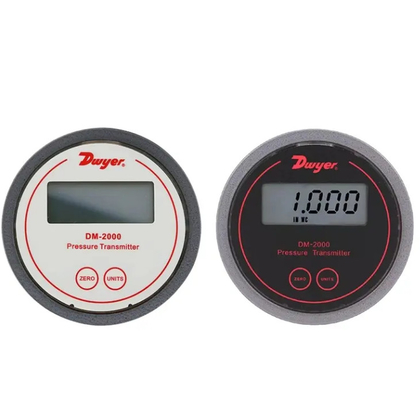

Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003

  • Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003
  • Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003
  • Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003
  • Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003
  • Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003
  • Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003
Place of Origin USA
Brand Name dwyer
Certification -
Model Number DM-2000
Minimum Order Quantity 1
Price USD115/PC
Packaging Details Original
Delivery Time 2weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Industrial Material Abs
Operating Temperature -20℃~+80℃ Parameters Measured Pressure
Highlight

LCD Differential Pressure Multimeter

,

DM-2000 LCD Differential Pressure Gauge
Leave a Message
Product Description
Product Overview
  • Accuracy Detail± 1% FS, ± 30 Pa model ± 4% FS at 70°F
  • ApplicationsFilter Monitoring, HVAC
  • Display Note3.5 digit LCD, 0.7" H
  • Display TypeLCD
  • Electrical ConnectionScrew Terminal
  • Electrical Output4 to 20 mA
  • Long Term Stability± 1% FS/year
  • Loop Resistance0 to 1250 Ω max
  • Materials, WettedConsult Factory
  • Media CompatibilityAir, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
  • Mounting NoteVertical
  • Number of Digits3.5
  • Number of Wires2
  • Operating Temperature, Max48.9 °C
  • Operating Temperature, Min-6.67 °C
  • Output SignalCurrent
  • Power Consumptionmax 38 mA
  • Measurement Pressure TypeDifferential
  • Process Connection Size1/8 in
  • Process Connection TypeBarbed Fitting
  • Proof PressureUp to 10 psi
  • Span AdjustmentPush Button
  • Supply Power TypeDC
  • Supply Voltage10 to 35 Vdc
  • Thermal Effects± 0.099% FS/°CDwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003 0Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003 1Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003 2Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003 3
