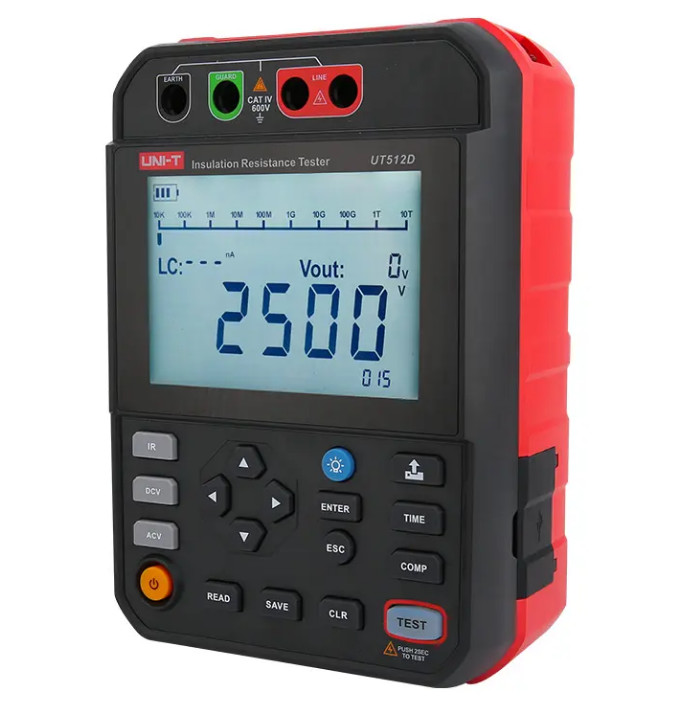

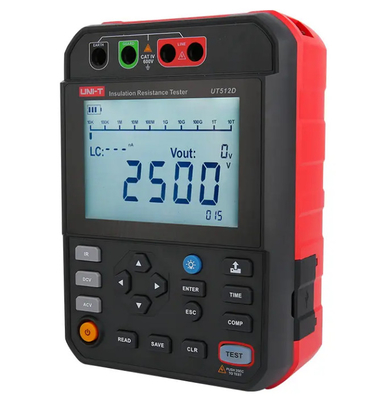

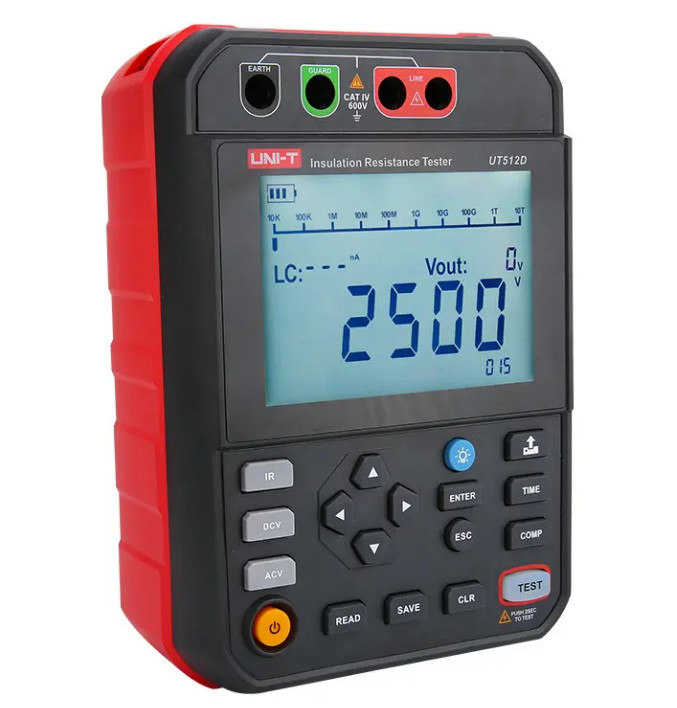

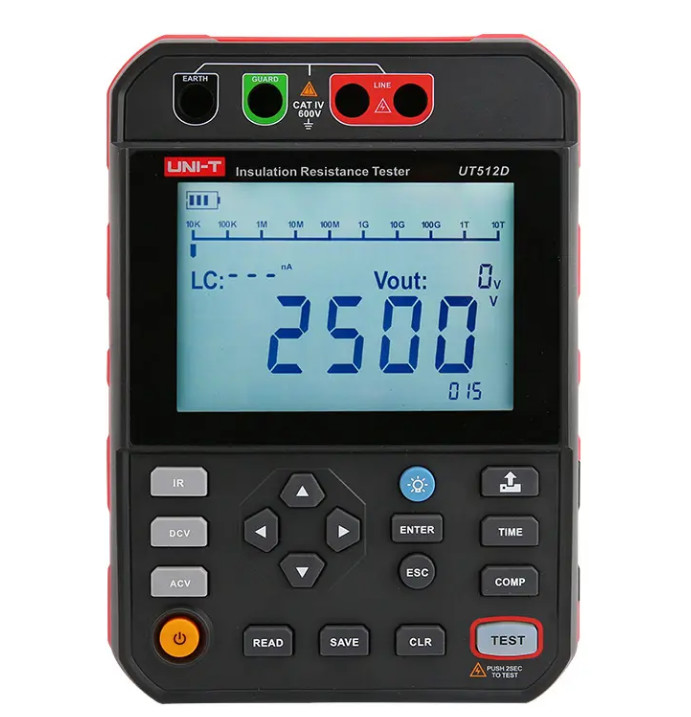

Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers

  • Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers
  • Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers
  • Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers
  • Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers
Place of Origin China
Brand Name UNI-T
Certification -
Model Number UT512D
Minimum Order Quantity 1
Price USD205/PC
Packaging Details Original
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Brand Name UNI-T
Application Voltage Tester CAT Rating CAT IV 600V
Product Color Black+Red Standard Package Case + Carton
Highlight

2.5kV Insulation Resistance Testers

,

UNI-T Insulation Resistance Testers

,

UT512E Insulation Resistance Testers
Leave a Message
Product Description

Specifications of UT512D/UT512E 2.5kV Insulation Resistance Testers


Rated voltage UT512D UT512E Accuracy
250V <0.25MΩ <0.25MΩ reference only
0.25MΩ～4.99GΩ 0.25MΩ～4.99GΩ ±(5%+5)
5.00GΩ～24.9GΩ 5.00GΩ～49.9GΩ ±(20%+10)
25.0GΩ～100GΩ 50.0GΩ～250GΩ reference only
500V <0.50MΩ <0.50MΩ reference only
0.50MΩ～9.99GΩ 0.50MΩ～9.99GΩ ±(5%+5)
10.0GΩ～49.9GΩ 10.0GΩ～99.9GΩ ±(20%+10)
50.0GΩ～200GΩ 100GΩ～500GΩ reference only
1000V <1.00MΩ <1.00MΩ reference only
1.00MΩ～19.9GΩ 1.00MΩ～19.9GΩ ±(5%+5)
20.0GΩ～99.9GΩ 20.0GΩ～199GΩ ±(20%+10)
100GΩ～400GΩ 200GΩ～1.00TΩ reference only
2500V <2.50MΩ <2.50MΩ reference only
2.50MΩ～49.9GΩ 2.50MΩ～49.9GΩ ±(5%+5)
50.0GΩ～249GΩ 50.0GΩ～499GΩ ±(20%+10)
250GΩ～1.00TΩ 500GΩ～2.50TΩ reference only
Capacitance test NA 0.01uF～2.0uF ±(15%+3)
Low resistor test NA 0.1Ω～600Ω ±(2%+10)
Output voltage(Rating) stepping voltage range Step by 10% of each range each time, and adjust the voltage range to 50%~120% of each range；
Display accuracy:±(10% read+10V)
Output accuracy:±(0%～20%)
250V 350V, 275V, 300V
500V 300V, 350V, 400V, 450V, 500V, 550V, 600V
1000V 500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V
2500V 1250V, 1500V, 1750V, 2000V, 2250V, 2500V
DC voltage 30～1000VDC ±(3%+5)
AC voltage 30～750VAC
50Hz/60Hz		 ±(3%+5)
Current 0.01nA～3.5mA 0.01nA～5mA
Short-circuit current about 3.5mA about 5mA
Features
PI test automatic display √
DAR test automatic display √
Timing measurement   √
Resistance comparison   √
Monitoring function Monitor the voltage of measured object and the discharge state after testing. √
Timer testing Record testing time automatically.
Timing range: 0s～99m and 59s		 √
Storage function   999 sets
Data transmission Upload testing data to computer via USB cable. √
Low Battery indication   √
Auto power off   √
Dimensions   238 * 166 * 90.5mm
CAT rating CAT Ⅳ 600V
Certificates CE/UKCAOriginal UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers 0Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers 1Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers 2Original UNI-T UT512D/UT512E 2.5kV Insulation Resistance Testers 3
