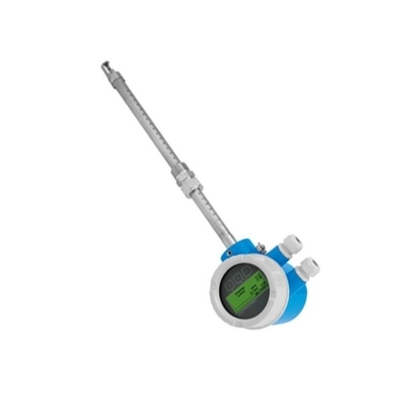

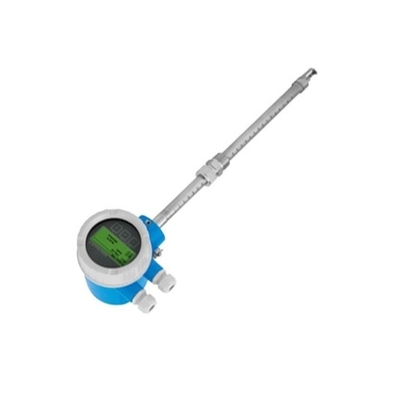

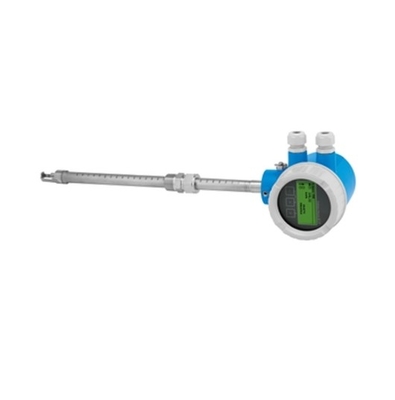

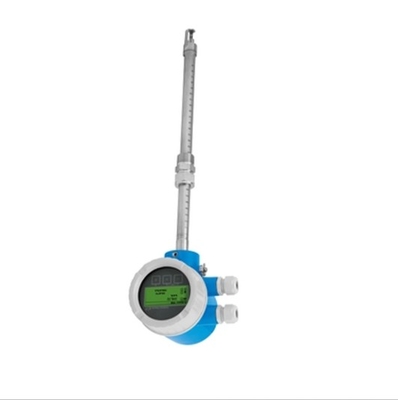

E+H/ Endeshaus Thermal Gas Mass Flowmeter 6BABL2 6BABL3 Integrated Insertion Type

This measurement principle has a high operational measurement range and can directly measure the mass flow rate

It is applicable to the measurement of air, nitrogen, carbon dioxide and argon in circular pipes and rectangular air ducts Instrument characteristics The insertion type is suitable for pipes with nominal pipe diameters ranging from DN 80 to 1500 (3 to 60") The installation and removal of sensors do not require any interruption in the process Easy to install Integrated type with DC 24V power supply 4-20 mA HART, pulse/frequency/switch output Compact and robust transmitter advantage   It is applicable to the measurement of air, nitrogen, carbon dioxide and argon in circular or square pipes Optimization process monitoring: It can be conveniently measured even at low pressure and low flow rate Economic measurement: Easy to install, negligible pressure loss, and maintenance-free Reliable flow trend: Multivariable measurement Fast and effective debugging: Guided operation menu High factory adaptability: Self-diagnosis and error monitoring Automatic data recovery for convenient service
