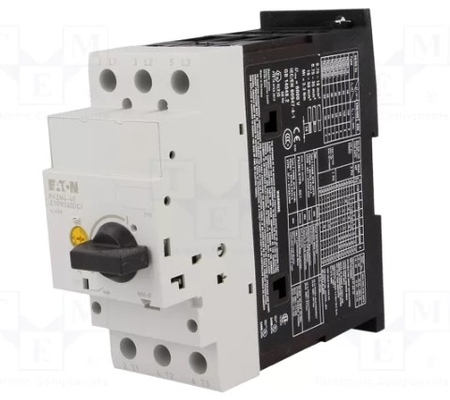

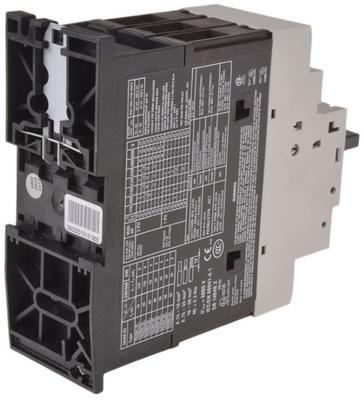

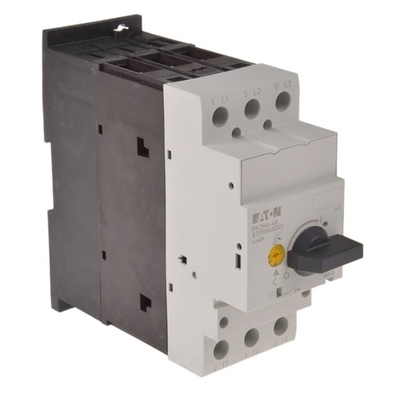

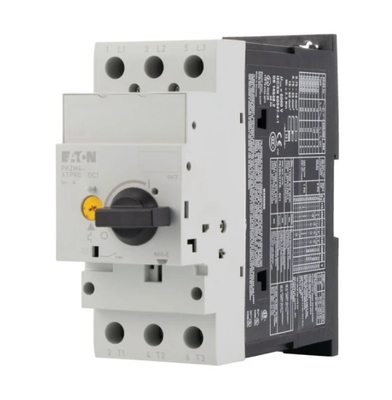

Motor-protective Circuit-breaker 3p Ir 32 40 A Screw Connection Catalog Number Y7-222354 222354 PKZM4-40 EATON ELECTRIC

  • Motor-protective Circuit-breaker 3p Ir 32 40 A Screw Connection Catalog Number Y7-222354 222354 PKZM4-40 EATON ELECTRIC
  • Motor-protective Circuit-breaker 3p Ir 32 40 A Screw Connection Catalog Number Y7-222354 222354 PKZM4-40 EATON ELECTRIC
  • Motor-protective Circuit-breaker 3p Ir 32 40 A Screw Connection Catalog Number Y7-222354 222354 PKZM4-40 EATON ELECTRIC
  • Motor-protective Circuit-breaker 3p Ir 32 40 A Screw Connection Catalog Number Y7-222354 222354 PKZM4-40 EATON ELECTRIC
Place of Origin china
Brand Name EATON
Certification CE
Model Number PKZM4-40
Minimum Order Quantity 1
Price USD$65
Packaging Details carton
Delivery Time 2-3weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Catalog Number Y7-222354 Reference PKZM4-40
Manufacturer EATON-MOELLER Product Length/Depth 160 Mm
Highlight

3p Motor-protective circuit-breaker

,

screw connection Motor-protective circuit-breaker

,

40 A Motor-protective circuit-breaker
Leave a Message
Product Description
ETIM for 222354 Low-voltage industrial controls and switchgear (EC000074)
Feature Name Feature Value
Overload release current setting (EF002336) 32 A
Adjustment range undelayed short-circuit release (EF007131) 620 A
With thermal overload protection (EF006233) No
Phase failure sensitive (EF007400) Yes
Switch off technique (EF007007) Thermomagnetic
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 40 A
Rated operation power at AC-3, 230 V (EF007025) 11 kW
Rated operation power at AC-3, 400 V (EF001364) 20 kW
Power loss (EF005387) 20.7 W
Type of electrical connection of main circuit (EF006819) Screw connection
Type of control element (EF006976) Rotating button
Device construction (EF008240) Built-in device fixed built-in technique
With integrated auxiliary switch (EF001387) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) 50 kA
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 140 mm
Width (EF000008) 55 mm
Depth (EF000049) 160 mm
