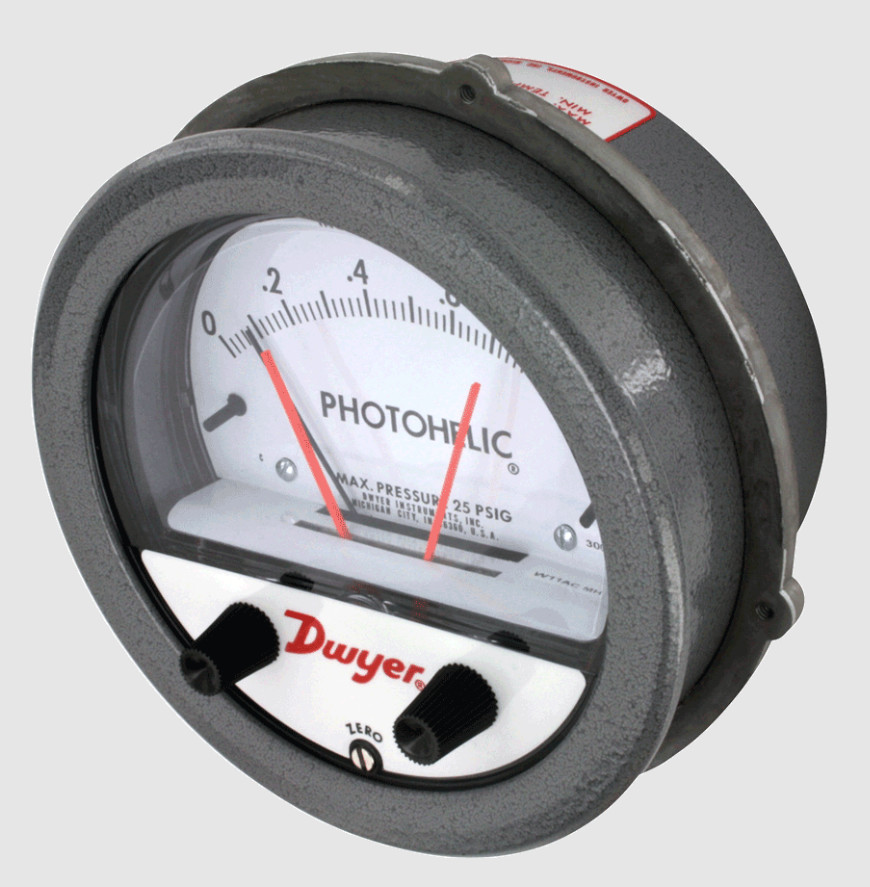

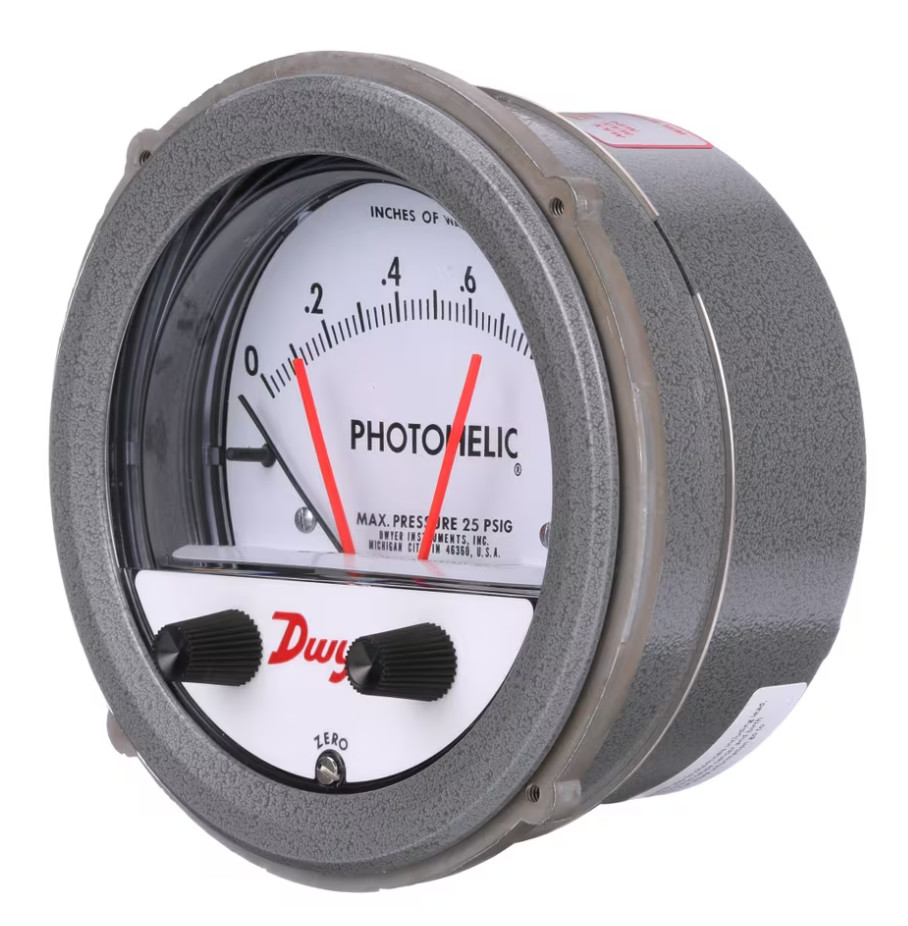

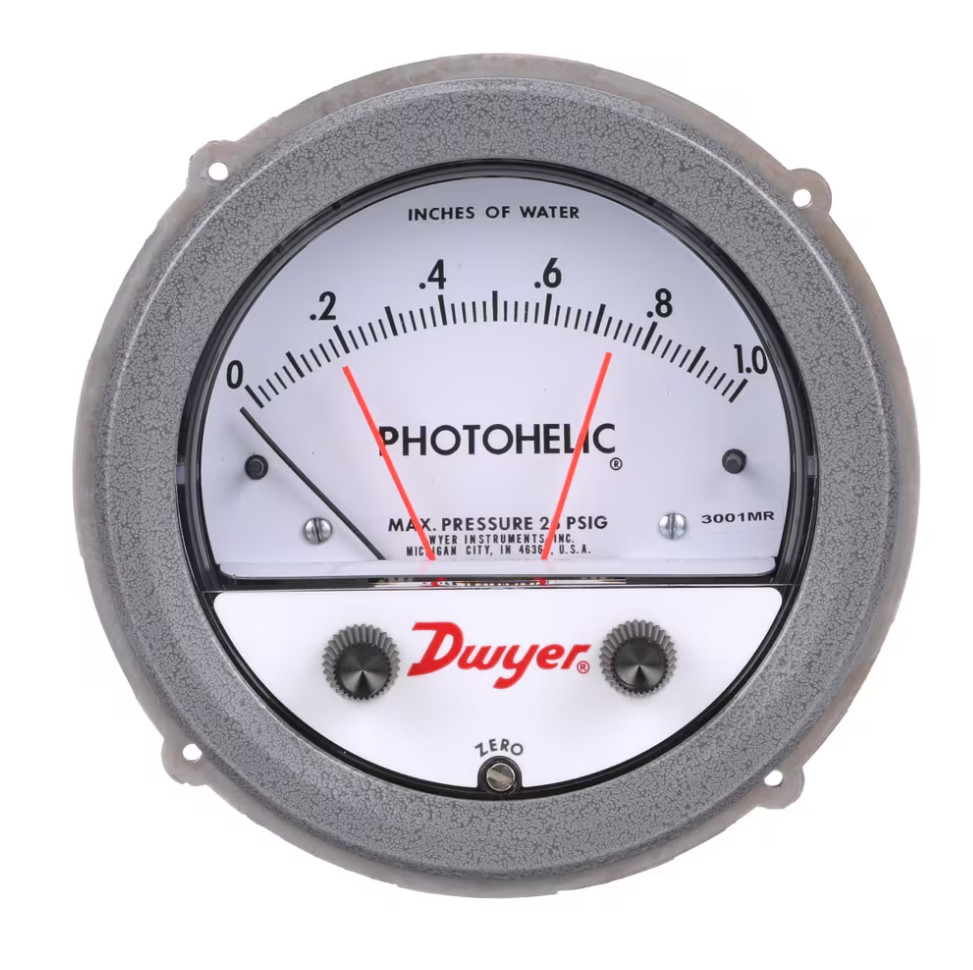

Dwyer Photohelic Switch 3000MRS-00 3000MRS-0 3001MRS 3002MRS Differential Pressure Gauge
| Place of Origin | USA |
|---|---|
| Brand Name | DWYER |
| Certification | CCC,CE |
| Model Number | 3000MRS-00 3000MRS-0 3001MRS 3002MRS |
| Minimum Order Quantity | 1 |
| Price | USD$45/PC |
| Packaging Details | Original case |
| Delivery Time | 3 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 |
Product Details
| Service | Air And Non-combustible, Compatible Gases. | Accuracy | ±2% Of FS |
|---|---|---|---|
| Pressure Limit | -20" Hg. To 25 Psig | Temperature Limits | 0 To 120°F |
| Process Connections | 1/8" Female NPT | Size | 4" (101.6 Mm) Dial Face, 5" (127 Mm) OD X 3-1/8" (79.38 Mm) |
| Highlight | 3002MRS Photohelic Switch,3000MRS-00 Photohelic Switch,3001MRS Photohelic Switch |
||
Product Description
Dwyer Photohelic Switch 3000MRS-00 3000MRS-0 3001MRS 3002MRS
Features
Gage reading unaffected by switch operation and will continue to read pressure even during power loss
Zero and range adjustments outside of gage means no disassembly in normal service
Solid-state design allows for switching in high cycle rat
Options
-TAMP Tamper-Proof Knobs, require special spanner-type key (included) to adjust set points.
-LT Low Temperature Option for use under 20°F (-6.7°C).
-MP Medium Pressure increases maximum rated pressure to 35 psig (2.41 bar).
-WP Weatherproof housing option.
-HP High Pressure increases maximum rated pressure to 80 psig (5.5 bar).
