Dwyer Series 616KD Series Differential Pressure Transmitter 616KD-B-54
| Place of Origin | USA |
|---|---|
| Brand Name | Dwyer |
| Certification | CCC,CE |
| Model Number | 616KD-B-54 |
| Minimum Order Quantity | 1 |
| Price | USD$110/PC |
| Packaging Details | Original case |
| Delivery Time | 6 Weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Service | Air And Non-combustible, Compatible Gases | Accuracy | 616KD-A: ±0.25% FS; 616KD-B: ±1% FS, 616KD: ±2% FS |
|---|---|---|---|
| Stability | ±1% FS/year | Temperature Limits | 0 To 140°F |
| Compensated Temperature Range | 20 To 122°F | Pressure Limits | 2 Psig |
| Output Signal | 4 To 20 MA | Electrical Connections | Screw-type Terminal Block |
| Highlight | Dwyer Series 616KD,616KD-B-54 Differential Pressure Transmitter,Dwyer Series 616KD Differential Pressure Transmitter |
||
Product Description

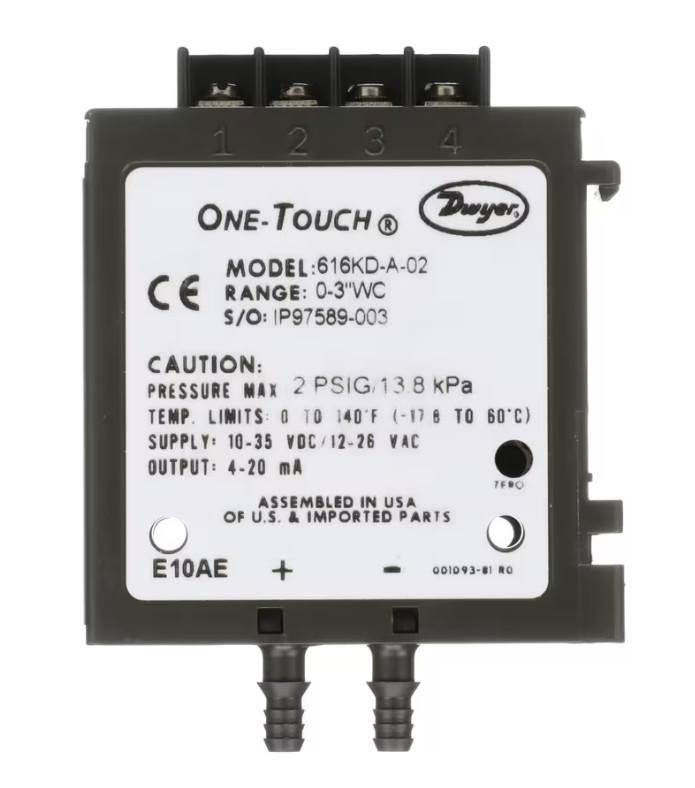

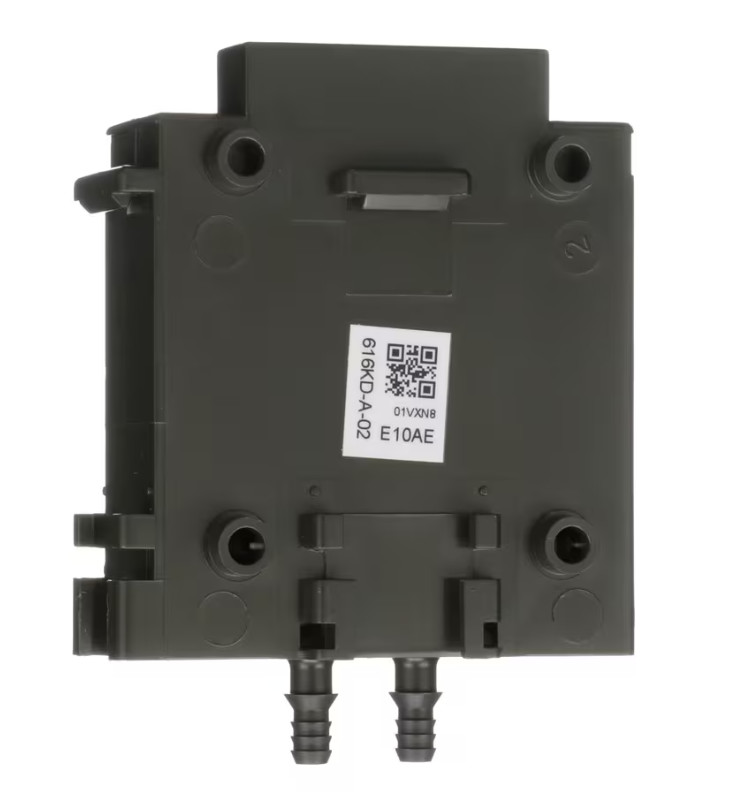

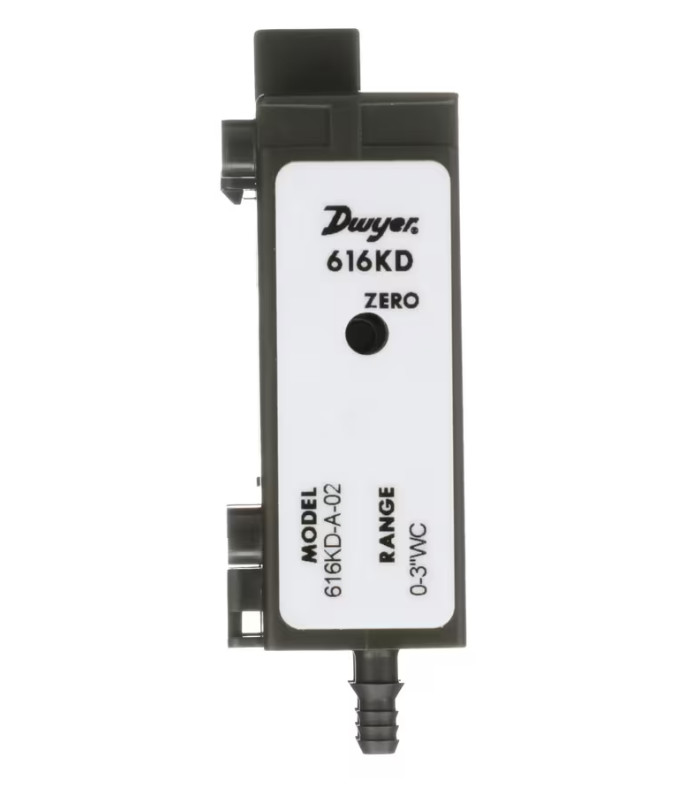

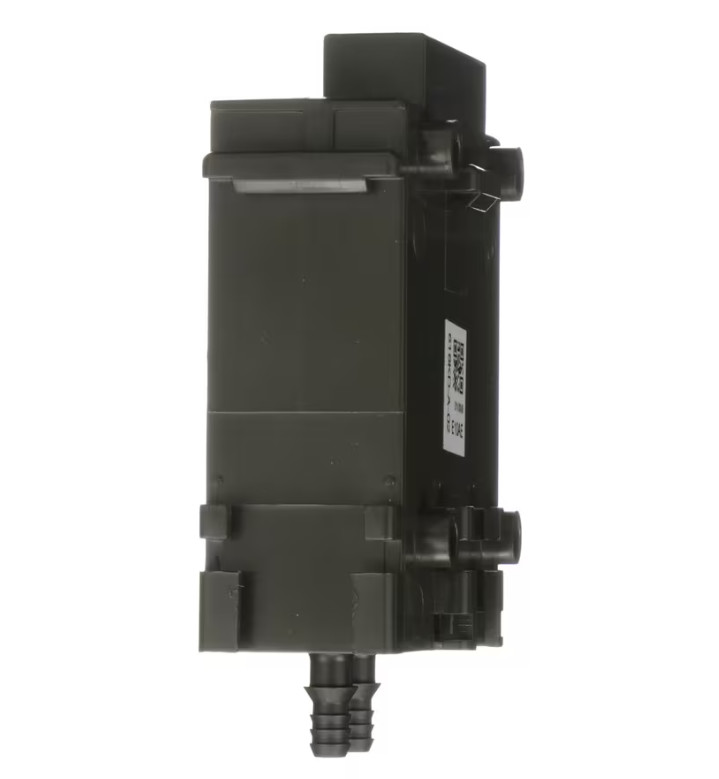

Dwyer Series 616KD Series Differential Pressure Transmitter 616KD-B-54
The Series 616KD Differential Pressure Transmitters with One-Touch® Digital Push- Button Calibration Technology are designed for simplicity, making them the ideal choice for installers and maintenance professionals. These instruments not only alleviate cumbersome turn pots typically found in most transmitters, but eliminate entirely the need to span the instruments during calibration. With a single digital push button, both ZERO AND SPAN are calibrated properly, nothing else is required. No additional reference pressure sources or separate calibration devices are necessary.
NIST CALIBRATION available in Product Configurator.
Features
Simple calibration push-button sets back zero and span, saving time installing and over the service life
Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
Ranges and accuracy selection cover a wide range of applications minimizing components and determining standardizing on design
Optional 1/8" NPT process connection allows for use with metal barbed fittings or compression fittings for use with metal tubing
Side mounted push button zero (-A and -B models only)
