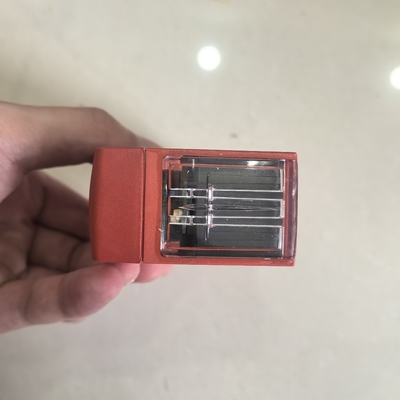

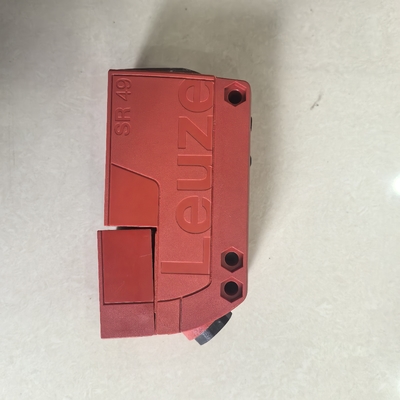

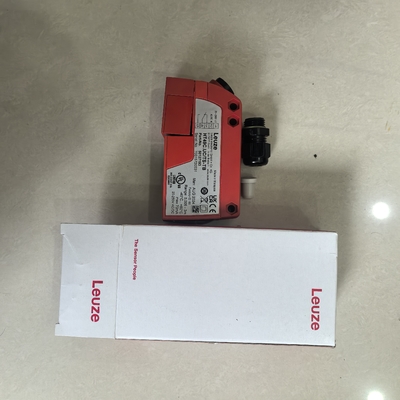

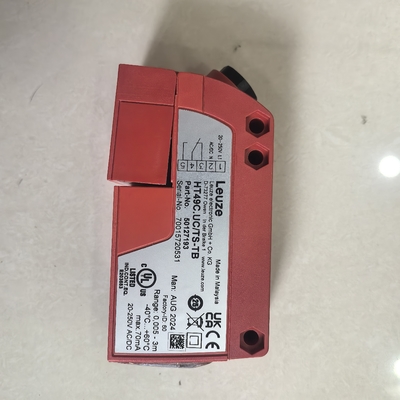

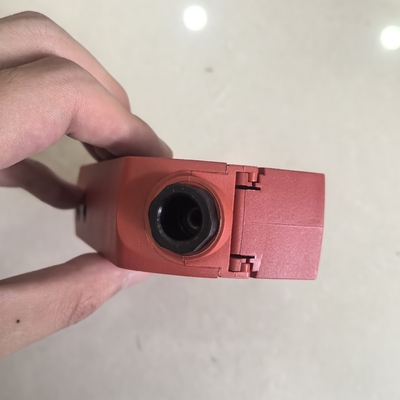

HT49C.UC/TS-TB Diffuse Sensor With Background Suppression Series 49c 10X10X5 Cm Single Package Size From LEUZE
| Place of Origin | - |
|---|---|
| Brand Name | Leuze |
| Certification | - |
| Model Number | HT49C.UC/TS-TB |
| Minimum Order Quantity | 1 |
| Price | USD90/PC |
| Packaging Details | Original |
| Delivery Time | 2-3WEEKS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Germany | Brand Name | Leuze |
|---|---|---|---|
| Warranty | 1year | Selling Units | Single Item |
| Single Package Size | 10X10X5 Cm | Single Gross Weight | 0.500 Kg |
| Color | Red | SeSeriesries | 49c |
| Highlight | LEUZE Diffuse Sensor,Background Suppression Diffuse Sensor,HT49C.UC/TS-TB Diffuse Sensor |
||
Product Description
| Series | 49C |
| Operating principle | Diffuse reflection principle with background suppression |
| Black-white error | < 10% up to 1200 mm |
| Operating range | Guaranteed operating range |
| Operating range, white 90% | 0.005 ... 3 m |
| Operating range, gray 18% | 0.02 ... 2 m |
| Operating range, black 6% | 0.05 ... 1.5 m |
| Operating range limit, white 90% | 0.005 ... 3 m |
| Operating range limit | Typical operating range |
| Adjustment range | 120 ... 3,000 mm |
| Light source | LED, Red |
| Wavelength | 630 nm |
| LED group | Exempt group (in acc. with EN 62471) |
| Protective circuit | Interference blanking Transient protection |
| Supply voltage UB | 20 ... 250 V, AC/DC |
| Power consumption (with AC) | 1.5 V·A |
| Number of digital switching outputs | 2 Piece(s) |
| Switching element | Relay, NC |
| Switching principle | Light/dark switchable |
| Switching element | Relay, NO |
| Switching principle | Light/dark switchable |
| Switching frequency | 25 Hz |
| Response time | 20 ms |
| Readiness delay | 300 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Terminal |
| Type of terminal | Spring-cage terminal |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic |
| Plastic housing | PC |
| Lens cover material | Plastic |
| Net weight | 150 g |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Operational controls | Multiturn potentiometer Teach button |
| Function of the operational control | Activation of the time module for dropout delay Light/dark switching Range adjustment Switching range adjustment |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
| Protection class | II |
| Certifications | c UL US |
| Standards applied | IEC 60947-5-2 |
| Customs tariff number | 85365080 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ECLASS 13.0 | 27270903 |
| ECLASS 14.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| ETIM 9.0 | EC002719 |
