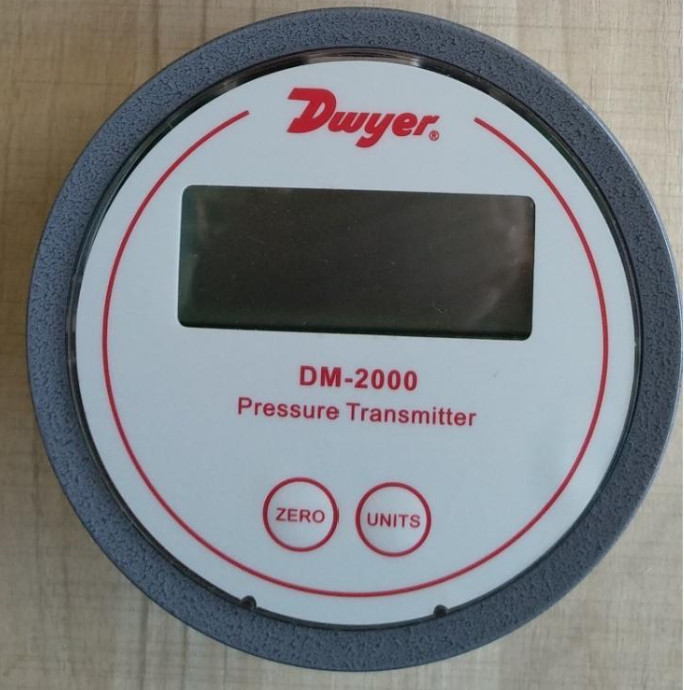

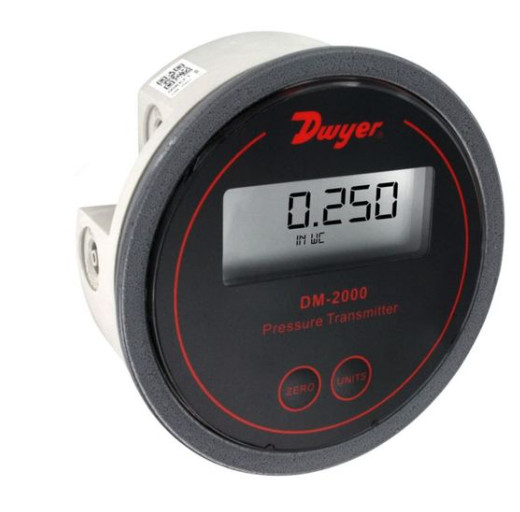

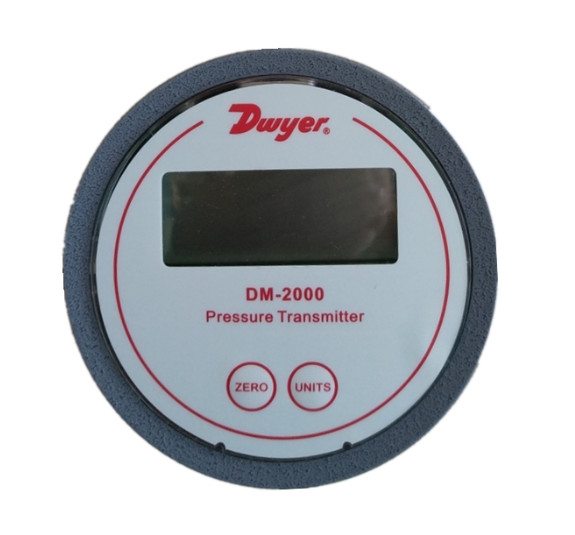

New And Original Dwyer Series DM-2000 Differential Pressure Transmitter IN STOCK
| Place of Origin | - |
|---|---|
| Brand Name | Dwyer |
| Certification | - |
| Model Number | DM-2000 |
| Minimum Order Quantity | 1 |
| Price | USD90/PC |
| Packaging Details | Original |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Customized Support | OEM, ODM, OBM | Model Number | Differential Pressure Gauge |
|---|---|---|---|
| Product Name | Differential Pressure Gauge | Certificate | ISO19002/SIL |
| Material | Aluminum | Range | -68~103Kpa |
| Pressure Rating | 15 PSI (1.03 Bar) | Brand Name | MAGRFHELIC |
| Ambient Temperature | -7 ~ 60 °C | ||
| Highlight | IN STOCK Differential Pressure Transmitter,New Differential Pressure Transmitter,Original Differential Pressure Transmitter |
||
Product Description
The Dwyer Series DM-2000 Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM-2000 housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic® gage. A wide range of models are available factory calibrated to specific ranges.

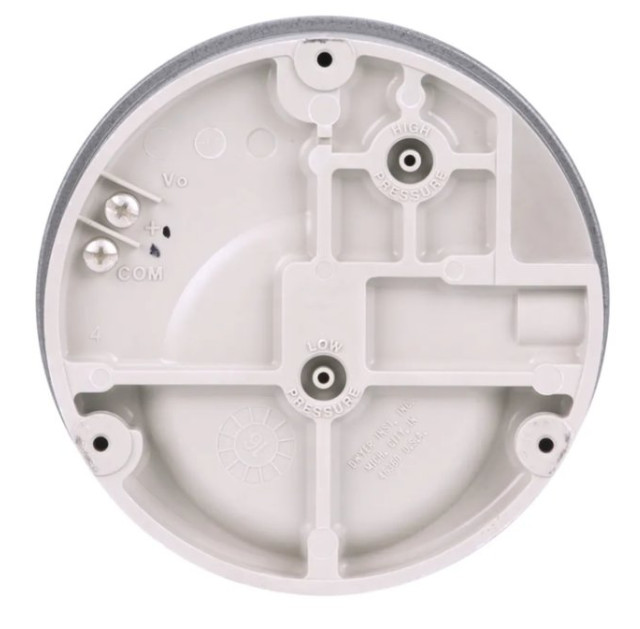

Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy. Digital push-button zero and span simplify calibration over typical turn-potentiometers. An optional 3.5 digit LCD shows process and engineering units. A single push button allows field selection of 4 to 6 engineering units depending on range.
Dwyer Series DM2000 Specifications
- Service:Air and non-combustible, compatible gases.
- Wetted Materials:Consult Factory.
- Accuracy:±1% F.S. at 70°F.
- Stability:+1% F.S./yr.
- Temperature Limits:20 to 120°F (-6.67 to 48.9°C).
- Pressure Limits:10 psig (0.69 bar).
- Thermal Effect:±0.055% F.S./°F (0.099% F.S./°C).
- Power Requirements:10-35 VDC (2 wire).
- Output Signal:4 to 20 mA.
- Zero and Span Adjustments:Digital push-button zero and span.
- Loop Resistance:DC: 0-1250 ohms maximum.
- Current Consumption:DC: 38 mA maximum.
- Electrical Connections:Screw-type terminal block.Display:3.5 digit LCD, 0.7″ height.
- Process Connections:1/8″ I.D. tubing.
- Mounting Orientation:Vertical.
- Weight:4.8 oz (136 g).
-
The Dwyer Series DM2000 Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM2000 housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic® gage. A wide range of models are available factory calibrated to specific ranges.
Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy. Digital push-button zero and span simplify calibration over typical turn-potentiometers. An optional 3.5 digit LCD shows process and engineering units. A single bush button allows field selection of 4 to 6 engineering units depending on range.
