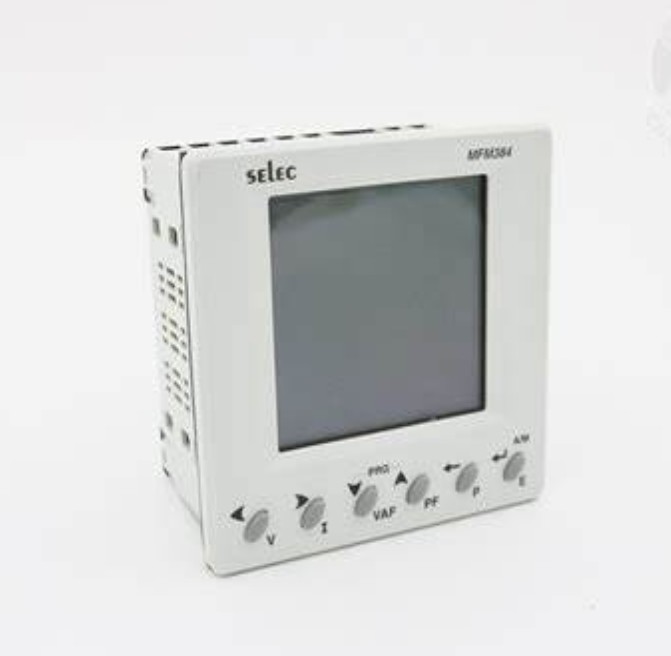

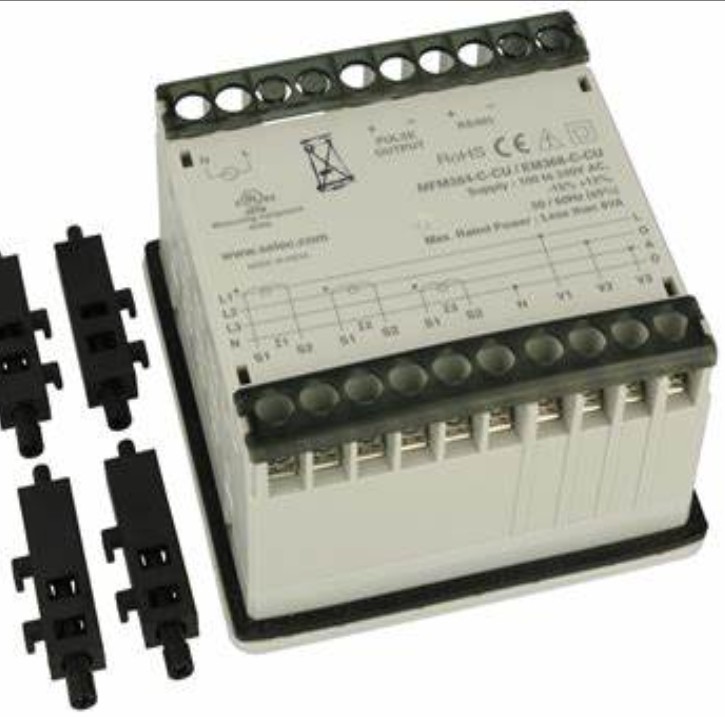

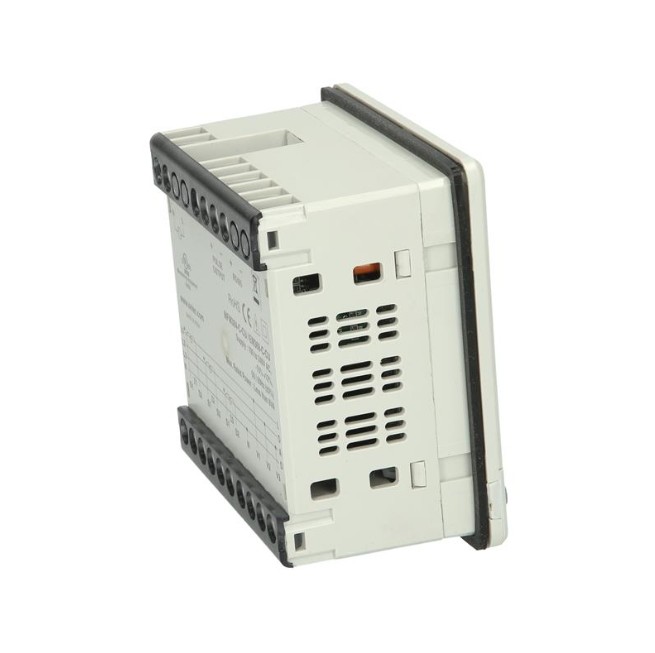

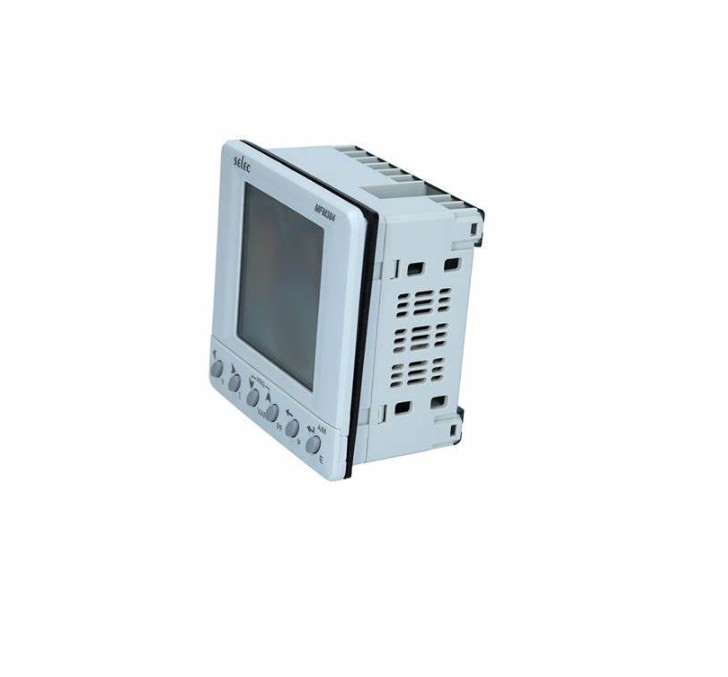

85 to 300V AC / DC Digital Multifunction Meter Selec MFM384-C-CU-G
| Place of Origin | china |
|---|---|
| Brand Name | Selec |
| Certification | CE |
| Model Number | MFM384-C-CU-G |
| Minimum Order Quantity | 1 |
| Price | USD$880 |
| Packaging Details | carton |
| Delivery Time | 4-6weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Supply Voltage | 85 To 300V AC / DC (45/65Hz) | Size | 96 X 96mm |
|---|---|---|---|
| Mounting Type | Panel Mount | Certification | CE, RoHS, UL & MID |
| Highlight | 300V AC DC Digital Multifunction Meter,Selec MFM384-C-CU-G |
||
Product Description
| Display Type | LCD with Backlight, Bar graph Representation for Current |
| Display Configuration | 4 Rows of 4 Digits, 1 Row of 8 Digits |

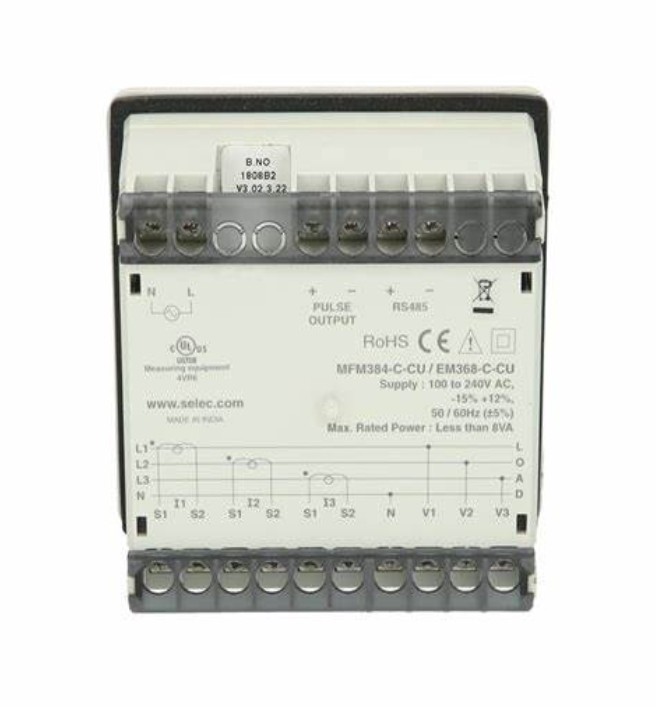

| Electrical Connection | 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W |
| Type of Output | Pulse Output |
| Features | %THD upto 31st Level, Max / Min Demand (Power), Max Demand Current, Phase Sequence Detection |
| Communication Protocol | RS485 and MODBUS RTU |
| CT Primary | 1 / 5 A to 10 kA (Programmable for Any Value) |
| CT Secondary | 1 / 5 A ( Programmable ) |
| PT Primary | 100 V to 500 kV (Programmable for Any Value) |
| PT Secondary | 100 to 500V AC (L - L) (Programmable for any value) |
| Rated Input Current | Nominal 5A AC (Min – 11mA; Max – 6A) |
| Supply Voltage | 85 to 300V AC / DC (45/65Hz) |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount |
| Certification | CE, RoHS, UL & MID |
|
Type
|
Energy Monitor
|
|
|
Measuring Type
|
Current, Voltage, Wattage
|
|
|
Measuring Range
|
-
|
|
|
Display Type
|
LCD - Black Characters, Backlight
|
|
|
Number of Characters Per Row
|
4, 4, 4, 4, 8
|
|
|
Display Characters - Height
|
0.450" (11.43mm)
|
|
|
Output Type
|
-
|
|
|
Voltage - Supply
|
100 ~ 240VAC
|
|
|
Panel Cutout Dimensions
|
Square - 91.50mm x 91.50mm
|
|
|
Mounting Type
|
Panel Mount
|
|
|
Termination Style
|
Screw Terminal
|
|
|
Ingress Protection
|
IP54 - Dust Protected, Water Resistant
|
|
|
Features
|
-
|
|
|
Operating Temperature
|
-10°C ~ 55°C
|
|
|
Weight
|
-
|
|
|
Base Product Number
|
The Digital multifunction Meter MFM384-C-CU-G from Selec offers various configurations for monitoring electrical realtime conditions. Input Specifications: Electrical Connection 3Ø-3/4 wire, 2Ø-3 wire, 1Ø-2 wire Input Voltage Range 11 to 300V AC, (Phase to Neutral) 19 to 519V AC, (Phase to Phase) Input Current Range Nominal 5A AC (Min-11mA, Max-6A) Frequency 45Hz - 65Hz Display Scrolling Automatic / manual Power Consumption 8VA Max Display Reset Programmable (For energy) Memory Retention 10 years (For energy) Measuring Parameters Voltage (L-L / L-N) (Individual / Average) Current (I1, I2, I3) (Individual / Average) Frequency, Power Factor (Individual / Total) Active, Reactive & Apparent power (Individual / Total), Active, Reactive & Apparent Energy (Total), Demand (Min / Max Active Power, Min / Max Reactive Power, Max Apparent Power), Max Demand Current, Neutral Current, Phase Sequence Detection. Output Specifications: Pulse Output Voltage Range - External 24V DCmax Current Capacity - 100mA max ± Pulse Width 100 ms 5 ms Communication Interface RS485 and MODBUS RTU
