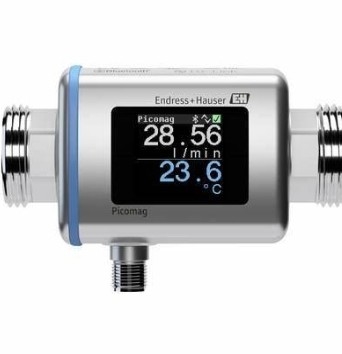

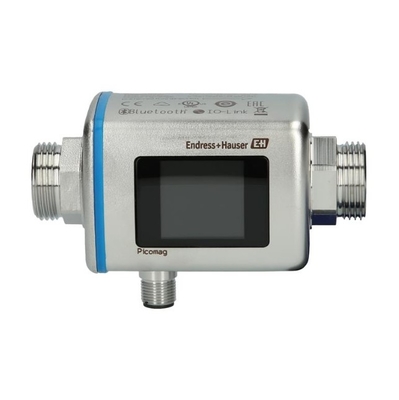

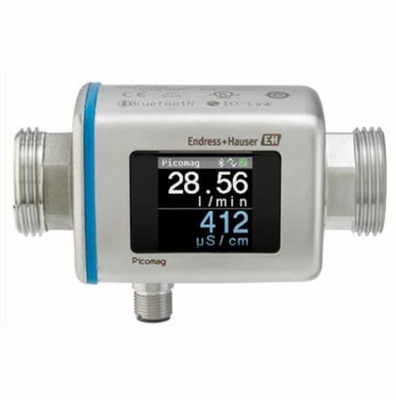

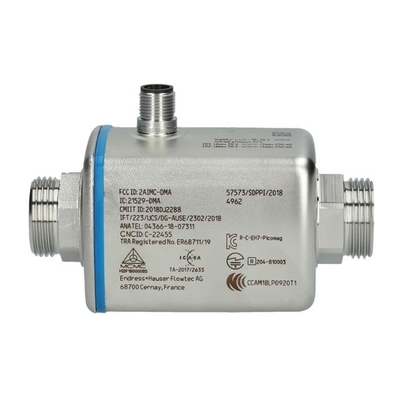

Endress+Hauser DMA20-AAACA1 Flowmeter Picomag 50l/min 4-20mA NPT 3/4'' M12 18-30Vdc
| Place of Origin | china |
|---|---|
| Brand Name | Endress+Hauser |
| Certification | CE |
| Model Number | DMA20-AAACA1 |
| Minimum Order Quantity | 1 |
| Price | USD$550 |
| Packaging Details | carton |
| Delivery Time | 8-10weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Communication | Bluetooth | Conductivity | 20-30000 US/cm |
|---|---|---|---|
| Diameter | 3/4" NPT In | IP Rating | IP65 ; IP67 |
| Highlight | NPT 3/4'' Flowmeter,DMA20-AAACA1 Flowmeter,Picomag Flowmeter |
||
Product Description
Picomag DMA20 from Endress+Hauser is the electromagnetic flowmeter inline version Cost-efficient measurement for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.
Alternate Mfr Part Number
DMA20-1009/0
Application
Skid builders ; Equipment manufacturers ; System integrators
Body Style
Rectangular
Communication
WLAN
Compatibility
IEC/EN61326 ; IEC/EN55011 (Class A)
Conductivity
20 uS/cm
Connection Type
M12 x 1 A-coded
DC Voltage
10 V
Display
On Device
Family Name
Picomag
Flow Rate
50 l/min
Function
Switch
Housing Type
Compact
Interface
Bluetooth
IP Rating
IP65 ; IP67
Material
Stainless Steel
Maximum Ambient Temperature
60 °C
Measurement Range
0-750 l/min
Measures
Flow (Volume)
Minimum Ambient Temperature
-10 °C
Operation
Remote ; Local
Output Type
Binary Output (Contact)
Power
3 W
Process Pressure
16 bar
Sensing Mode
Electromagnetic
Series
Storage Temperature
-25 to 85 C
Supply Voltage
18 VDC VAC ; 30 VDC VAC
Type
Liquid Flow
Vibration Resistance
Acceleration up to 5 g (10 to 2 000 Hz) in accordance with IEC/EN60068-2-6
