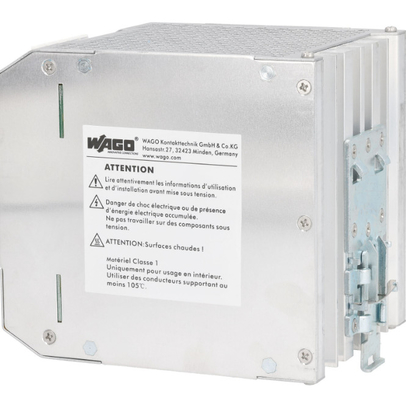

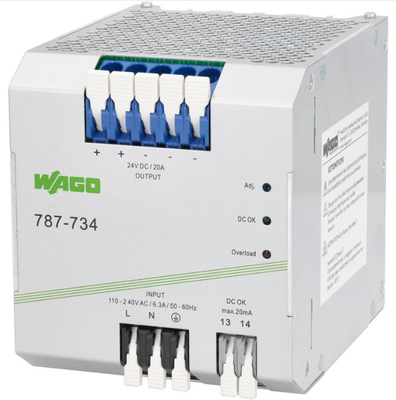

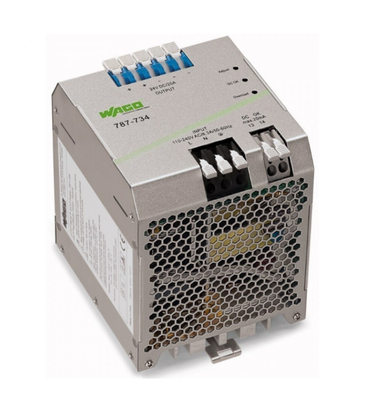

Original WAGO 787-734 787-885 Switched-mode Power Supply 24 VDC Output Voltage 20 A Output Current

Data sheet | Item number: 787-734 Switched-mode power supply; Eco; 1-phase; 24 VDC output voltage; 20 A output current; DC OK contact; 6,00 mm² www.wago.com/787-734 Subject to changes. Please also observe the further product documentation! WAGO Private Limited C-27, Sector-58, Phase-III Noida-201 301 | Gautam Budh Nagar (U.P) Tel.: +91-120-4369831 | Fax: +91-120-4388799 Email: info.india@wago.com Do you have any questions about our products? We are always happy to take your call at +91-120-4388700. 23.03.2021 Page 1/8 Data sheet | Item number: 787-734 www.wago.com/787-734 Subject to changes. Please also observe the further product documentation! WAGO Private Limited C-27, Sector-58, Phase-III Noida-201 301 | Gautam Budh Nagar (U.P) Tel.: +91-120-4369831 | Fax: +91-120-4388799 Email: info.india@wago.com Do you have any questions about our products? We are always happy to take your call at +91-120-4388700. 23.03.2021 Page 2/8 Item description Features: Natural convection cooling when horizontally mounted Encapsulated for use in control cabinets Fast and tool-free termination via lever-actuated PCB terminal blocks Bounce-free switching signal (DC OK) via optocoupler Parallel operation Electrically isolated output voltage (SELV) per UL 60950-1; PELV per EN 60204 Data Technical data Input Phases 1 Nominal input voltage Ui nom 1 x AC 110 … 240 V Input voltage range AC 85 … 264 V; DC 130 … 373 V Nominal mains frequency range 47 … 63 Hz; 0 Hz Input current Ii ≤ 3 A (230 VAC); ≤ 6.3 A (115 VAC) Discharge current ≤ 2 mA Inrush current ≤ 30 A Power factor ≥ 0.94 (230 VAC); ≥ 0.98 (115 VAC) Power factor correction (PFC) Active Mains failure hold-up time ≥ 20 ms (230 VAC) Output Nominal output voltage Uo nom DC 24 V (SELV) Output voltage range DC 22 … 28 V (adjustable) Default setting DC 24 V Nominal output current I o nom 20 A (24 VDC) Nominal output power 480W Control deviation ≤ 1 % Residual ripple ≤ 100 mV (peak-to-peak) Overload behavior Constant power (in overload range: 1.15 … 1.4 x I ); Shutdown o nom and automatic restart in the event of a short circui
