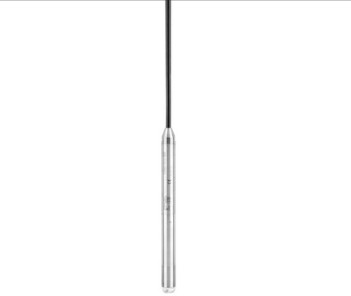

E+H Hydrostatic Level Measurement Waterpilot FMX21-AA121FGB11A Reliable And Robust Level Probe

Place of Origin china
Brand Name E+H
Certification CE
Model Number FMX21-AA121FGB11A
Minimum Order Quantity 1
Price USD$740
Delivery Time 10-12weeks
Payment Terms L/C, D/A, D/P, Western Union, MoneyGram, T/T
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Supply Voltage 10.5 ...35V DC Reference Accuracy 0.2% 0.1% (optional)
Long Term Stability 0.1% Of URL/year Communication 4...20 MA
Highlight

Reliable Waterpilot FMX21-AA121FGB11A

,

Hydrostatic Level measurement Waterpilot

,

E+H Waterpilot FMX21-AA121FGB11A

Leave a Message
Product Description

Field of application

The Waterpilot FMX21 transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and environmental applications for hydrostatic level measurement. With HART output, the measuring ranges can be freely adjusted and a density-compensated level measurement can be activated. It is certified for drinking water and offers integrated temperature measurement. Versions for applications in wastewaters and sludges or usage in salt water are also available.



Three different versions for drinking water, wastewater and sewage, saltwater.

  • Process connections: Suspension clamp, cable gland

  • Temperature: –10 to +70°C (14 to 158°F)

  • Measuring range: 0 to 20bar / 200m H20 (0 to 300psi / 600ft H2O)

  • Accuracy: ±0.2%, "Platinum" ±0.1%

  • International explosion protection certificates, marine approvals, drinking water approval

  • Benefits

  • Robust overload-resistant high purity ceramic sensor (99.9% Al2O3)

  • Flexible scaling of 4 to 20mA with superimposed HART 6.0 output

  • Highest level accuracy using temperature compensated density correction

  • Simultaneous measurement of level and temperature with optionally integrated Pt100 temperature sensor

  • Extensive range of accessories provides complete measuring point solutions

  • Climate proofed sensor thanks to completely potted electronics and 2-filter pressure compensation system

  • Small outer diameter of 22mm (0.87") version suitable for drinking water applications and for use in bore holes and wells with small diameters

  • Specs at a glance

  • Accuracy

    0.2%
    0.1% (optional)

  • Process temperature

    -10°C...70°C
    (14°F...158°F)
    Diameter 29 mm (1.14"): 0°C...50°C
    (32°F...122°F)

  • Pressure measuring range

    100 mbar...20 bar
    (1.5 psi...300 psi)

  • Main wetted parts

    Diameter 22 mm and 42 mm: Seal, 316L, Ceramic
    Diameter 29 mm: Seal, PPS, Polyolefin, Ceramic
    Extension cable: PE, PUR, FEP

  • Max. measurement distance

    200 m H2O
    (656 ft H2O)

  • Measuring cell

    100mbar...20bar
    (1.5psi...300psi)
