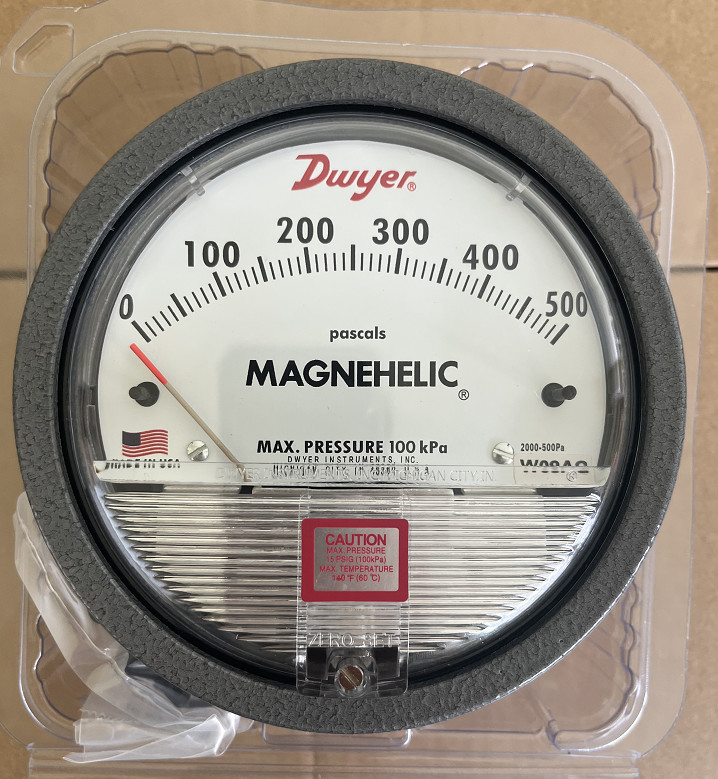

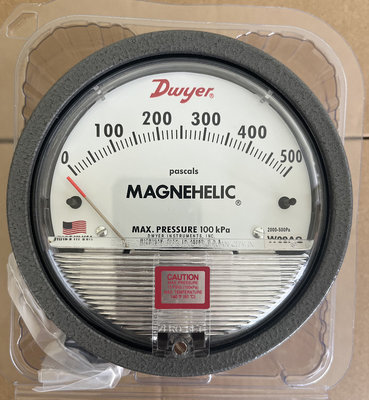

Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa

  • Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
  • Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
  • Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
  • Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa
Place of Origin usa
Brand Name Dwyer
Certification CCC,CE
Model Number 2000-500pa
Minimum Order Quantity 1
Price USD$40/PC
Packaging Details Original
Delivery Time 1 weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service Air And Non-combustible, Compatible Gases Accuracy ±2%

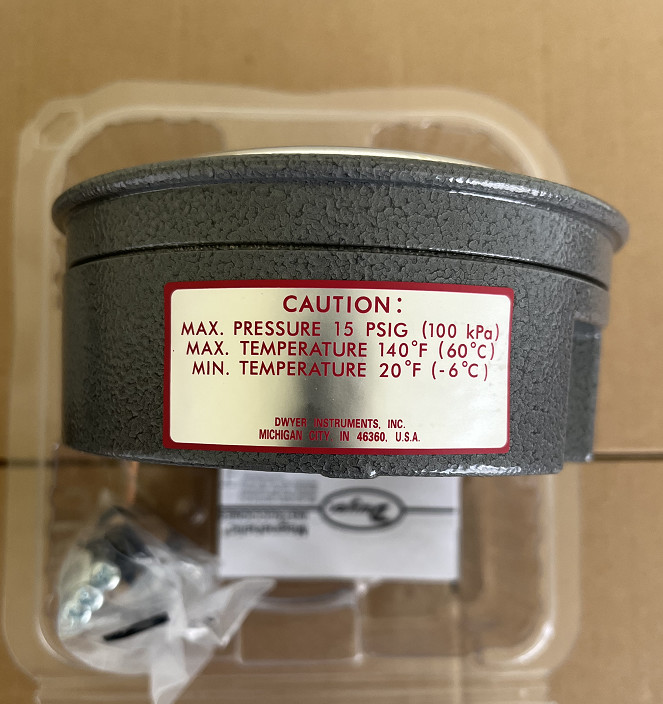

Pressure Limits -20 In Hg. To 15 Psig Enclosure Rating IP67
Overpressure Relief Plug Opens At Approximately 25 Psig (1.72 Bar), Standard Gages Only Temperature Limits 20 To 140°F
Mounting Orientation Diaphragm In Vertical Position Dimensions 4" (101.6 Mm) Diameter Dial Face
Highlight

500pa Magnehelic Differential Pressure Gauge

,

750pa Magnehelic Differential Pressure Gauge

,

1000pa Magnehelic Differential Pressure Gauge
Leave a Message
Product Description

Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 2000-500pa

Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 0-500pa 0-750pa 0-1000pa 0



  • Precision litho-printed scale is accurate and easy to read.
  • Red tipped pointer of heat treated aluminum tubing is easy to see. It is rigidly mounted on the helix shaft.
  • Pointer stops of molded rubber prevent pointer over-travel without damage.
  • "Wishbone" assembly provides mounting for helix, helix bearings and pointer shaft.
  • Jeweled bearings are shock-resistant mounted; provide virtually friction-free motion for helix. Motion damped with high viscosity silicone fluid.
  • Zero adjustment screw is conveniently located in the plastic cover, and is accessible without removing the cover. O-ring seal provides pressure tightness.
  • Helix is precision made from an alloy of high magnetic permeability. Mounted in jeweled bearings, it turns freely, following the magnetic field to move the pointer across the scale.
  • Samarium Cobalt magnet mounted at one end of range spring rotates helix without mechanical linkages.
  • Calibrated range spring is flat spring steel. Small amplitude of motion assures consistency and long life. It reacts to pressure on diaphragm. Live length adjustable for calibration.
