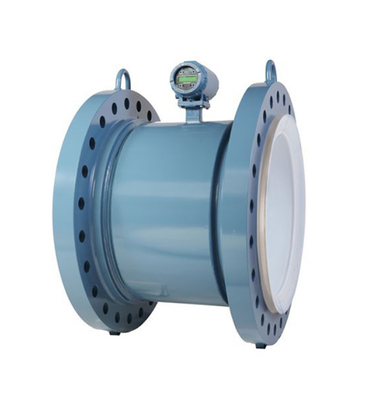

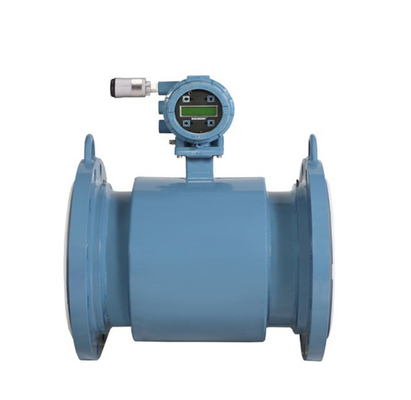

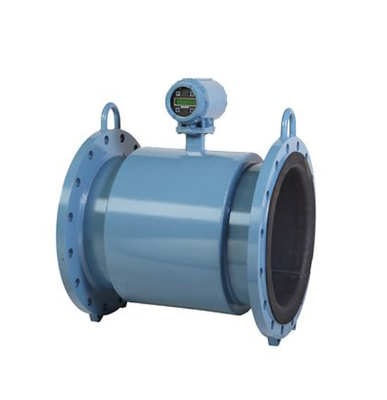

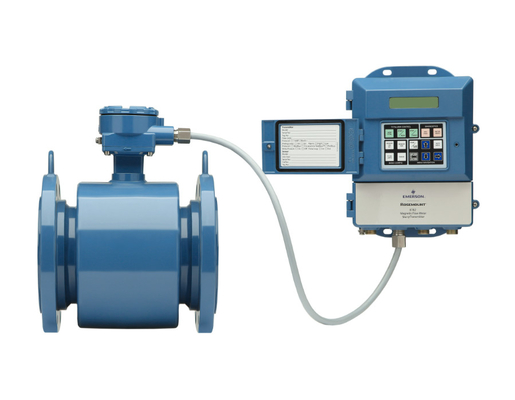

Original New ROSEMOUNTT EMERSON 8750W Magnetic Flow Meter Tube Sensor 3" DN80
| Place of Origin | Mexico |
|---|---|
| Brand Name | Emerson |
| Certification | CCC,CE |
| Model Number | 8750W |
| Minimum Order Quantity | 1 |
| Price | USD$1600/PC |
| Packaging Details | Original |
| Delivery Time | 6-8 Weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 100 |
Product Details
| Brand Name | Rosemount | Model Number | 8750W |
|---|---|---|---|
| Type | Variable Area Water Flowmeters | Max Voltage Input | 40 VDC |
| Max Voltage Output | 5 Volts | Max Power Input | 20W |
| Max Power Output | 1 MW | 740 PSI / 5.10 MPA | 740 PSI / 5.10 MPA |
| Max Process Temperature | 350°F / 177°C | ||
| Highlight | 8750W Magnetic Flow Meter,ROSEMOUNTT EMERSON Magnetic Flow Meter,DN80 Magnetic Flow Meter |
||
Product Description
Rosemount 8750W Magnetic Flow Meters
Product Description
The Rosemount 8750W Magnetic Flow Meter reduces lifecycle costs and unplanned shutdowns by accurately measuring water and wastewater flows in a variety of utility applications. The 8750W is supported by intelligent diagnostics that help users take advantage of improved installation, maintenance and process-management practices. With fully welded sensor construction and an isolated, replaceable terminal block the 8750W is the most dependable meter available for utility and water applications.
Specifications
Line Size :0.5" – 48" (15 mm – 1200 mm)
Liner Material:PTFE, Neoprene
Electrode Material:Stainless Steel, Nickel Alloy
Flange Standard:ANSI, EN, GB , AS4087, AS2129, JIS , AWWA
Flange Rating:Up to 300# / PN40 / 4.0Mpa / PN35 / Table E / 10K / Class D
Accuracy:Standard 0.5%; Optional High Accuracy 0.25%
Diagnostics:Empty Pipe, Grounding/Wiring Detection, High Process Noise, Coated Electrode Detection, Smart Meter Verification
Transmitter Output:4-20 mA Digital Electronics (HART Protocol), Modbus RS485
