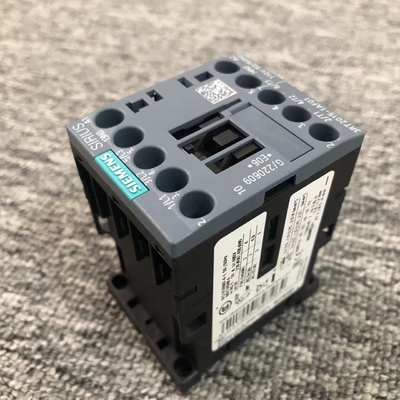

Screw Terminals Siemens AC Contactor 3RT2015 - 1AF01

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCondition | Original 100% | Application | Application |
---|---|---|---|
Delivery Time | Delivery 3-5 Working Days | Package | Original Package |
Highlight | Screw Terminals AC Contactor,110V AC Contactor |
The 3RT2015-1AF01 contactor is suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2 NO + 2 NC (terminal designations acc. to EN 50 012) are available as of size S0; the auxiliary switch block is removable. The size S3 contactors have removable box terminals for the main conductor connections. Ring cable lugs or bars can thus also be connected.
CONTACT RELIABILITY
If voltages ≤ 110 V and currents ≤ 100 mA are to be switched, the auxiliary contacts of 3RT contactors and 3RH contactor relays should be used to ensure good contact stability. These auxiliary contacts are suitable for electronic circuits with currents ≥ 1 mA at a voltageof 17 V.
AMP Rating | 18 AMPS AC-1 |
Coil voltage | 110 volt AC |
Terminals | Screw |
Brand Name | SIEMENS |
---|---|
Item Weight | 0.010 ounces |
Part Number | 3RT2015-1AF01 |
UNSPSC Code | 39121529 |
Voltage | 400.0 volts |
