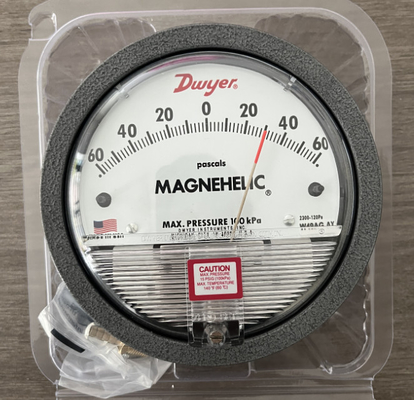

Dwyer Series 2000 Magnehelic Differential Pressure Gauge 0-60Pa

  • Dwyer Series 2000 Magnehelic Differential Pressure Gauge 0-60Pa
  • Dwyer Series 2000 Magnehelic Differential Pressure Gauge 0-60Pa
  • Dwyer Series 2000 Magnehelic Differential Pressure Gauge 0-60Pa
  • Dwyer Series 2000 Magnehelic Differential Pressure Gauge 0-60Pa
Place of Origin USA
Brand Name Dwyer
Certification CCC,CE
Model Number 2000 Series
Minimum Order Quantity 1
Price USD$35/PCS
Packaging Details carton
Delivery Time 5-8 WORK DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service Air And Non-combustible, Compatible Gases Accuracy ±2% Of FS
Temperature Limits 20 To 140°F. Size 4″ (101.6 Mm) Diameter Dial Face
High Light

Magnehelic Differential Pressure Gauge

,

Dwyer 2000 Differential Pressure Gauge

,

dwyer pressure guage 60Pa
You can tick the products you need and communicate with us in the message board.
Mounting Orientation Diaphragm in vertical position
Process Connections 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
Weight 0.55kg
Type New Original
Leave a Message
Mounting Orientation Diaphragm in vertical position
Product Description

Dwyer Series 2000 Magnehelic Differential Pressure Gage 0-60Pa





Product Description

Indicate Positive, Negative or Differential, Accurate within 2%

Select the Magnehelic® gage for high accuracy–guaranteed within 2% of full scale–and for the wide choice of 81 models available to suit your needs precisely. Using Dwyer’s simple, frictionless Magnehelic® gage movement, it quickly indicates low air or non-corrosive gas pressures–either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems. It’s inexpensive, too.

The Magnehelic® gage is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid amplifier or fluidic systems. It also checks gas-air ratio controls and automatic valves, and monitors blood and respiratory pressures in medical care equipment.

Note: May be used with Hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.

Please see SERIES AT22000 for ATEX approved.

Product Applications

  • Filter Monitoring
  • Air Velocity with Dwyer Pitot Tube
  • Blower Vacuum Monitoring
  • Fan Pressure Indication
  • Duct, Room or Building Pressures
  • Clean Room Positive Pressure Indication



Models

Model Description
2000-0 Differential pressure gage, range 0-0.50″ w.c., minor divisions .01, calibrated for vertical scale position.
2000-0-SP Differential pressure gage, range 0-0.50″ w.c., with set point indicator.
2000-00 Differential pressure gage, range 0-0.25″ w.c., minor divisions .005, calibrated for vertical scale position.
2000-00AV Differential pressure gage, range 0-0.25″ w.c., velocity 300-2000 FPM, calibrated for vertical scale position.
2000-00N Differential pressure gage, range .05-0-.2″ w.c., minor divisions .005, calibrated for vertical scale position.
2000-0AV Differential pressure gage, range 0-0.50″ w.c., velocity 500-2800 FPM, calibrated for vertical scale position.
2000-0D Differential pressure gage, range 0-0.5″ w.c. & 0-125 Pa.
2000-1.5KPA Differential pressure gage, range 0-1.5 kPa, minor divisions .05.
2000-100CM Differential pressure gage, range 0-100 cm w.c., minor divisions 2.0.
2000-100MM Differential pressure gage, range 0-100 mm w.c., minor divisions 2.0.
2000-100PA Differential pressure gage, range 0-100 Pa, minor divisions 2.0, calibrated for vertical scale position.
2000-10KPA Differential pressure gage, range 0-10 kPa, minor divisions .20.
2000-10MM Differential pressure gage, range 0-10 mm w.c., minor divisions .20, calibrated for vertical scale position.
2000-125PA Differential pressure gage, range 0-125 Pa, minor divisions 5.0, calibrated for vertical scale position.
2000-150CM Differential pressure gage, range 0-150 cm w.c., minor divisions 5.0.
2000-150MM Differential pressure gage, range 0-150 mm w.c.
2000-15CM Differential pressure gage, range 0-15 cm w.c., minor divisions .50.
2000-15KPA Differential pressure gage, range 0-15 kPa, minor divisions .50.
2000-15MM Differential pressure gage, range 0-15 mm w.c.
2000-1KPA Differential pressure gage, range 0-1 kPa, minor divisions .02.
2000-200CM Differential pressure gage, range 0-200 cm w.c., minor divisions 5.0.
2000-200MM Differential pressure gage, range 0-200 mm w.c.
2000-20CM Differential pressure gage, range 0-20 cm w.c., minor divisions .50.
2000-20KPA Differential pressure gage, range 0-20 kPa, minor divisions .50.
2000-250CM Differential pressure gage, range 0-250 cm w.c., minor divisions 5.0.
2000-250MM Differential pressure gage, range 0-250 mm w.c.
2000-250PA Differential pressure gage, range 0-250 Pa, minor divisions 5.0.
2000-25CM Differential pressure gage, range 0-25 cm w.c., minor divisions .50.
2000-25KPA Differential pressure gage, range 0-25 kPa, minor divisions .50.
2000-25MM Differential pressure gage, range 0-25 mm w.c., minor divisions .50.
2000-2KPA Differential pressure gage, range 0-2 kPa, minor divisions .05.
2000-300CM Differential pressure gage, range 0-300 cm w.c., minor divisions 10.0.
2000-300MM Differential pressure gage, range 0-300 mm w.c.
2000-300PA Differential pressure gage, range 0-300 Pa, minor divisions 10.0.
2000-30KPA Differential pressure gage, range 0-30 kPa, minor divisions 1.0.
2000-3KPA Differential pressure gage, range 0-3 kPa, minor divisions .10.
2000-4KPA Differential pressure gage, range 0-4 kPa, minor divisions .10.
2000-500PA Differential pressure gage, range 0-500 Pa, minor divisions 10.0.
2000-50CM Differential pressure gage, range 0-50 cm w.c., minor divisions 1.0.
2000-50MM Differential pressure gage, range 0-50 mm w.c., minor divisions 1.0.
2000-5KPA Differential pressure gage, range 0-5 kPa, minor divisions .10.
2000-60PA Differential pressure gage, range 0-60 Pa, minor divisions 2.0, calibrated for vertical scale position.
2000-6MM Differential pressure gage, range 0-6 mm w.c., minor divisions .20, calibrated for vertical scale position.
2000-750PA Differential pressure gage, range 0-750 Pa, minor divisions 25.0.
2000-80CM Differential pressure gage, range 0-80 cm w.c., minor divisions 2.0.
2000-80MM Differential pressure gage, range 0-80 mm w.c., minor divisions 2.0.
2000-8KPA Differential pressure gage, range 0-8 kPa, minor divisions .20.
2001 Differential pressure gage, range 0-1.0″ w.c., minor divisions .02.
2001-SP Differential pressure gage, range 0-1″ w.c., with set point indicator.
2001AV Differential pressure gage, range 0-1.0″ w.c., velocity 500-4000 FPM.
2001D Differential pressure gage, range 0-1.0″ w.c. & 0-250 Pa.
2002 Differential pressure gage, range 0-2.0″ w.c., minor divisions .05.
2002-SP Differential pressure gage, range 0-2″ w.c., with set point indicator.
2002AV Differential pressure gage, range 0-2.0″ w.c., velocity 1000-5600 FPM.
2002D Differential pressure gage, range 0-2.0″ w.c. & 0-500 Pa.
2003 Differential pressure gage, range 0-3.0″ w.c., minor divisions .10.
2003D Differential pressure gage, range 0-3.0″ w.c. & 0-750 Pa.
2004 Differential pressure gage, range 0-4.0″ w.c., minor divisions .10.
2004D Differential pressure gage, range 0-4.0″ w.c. & 0-1.0 kPa.
2005 Differential pressure gage, range 0-5.0″ w.c., minor divisions .10.
2005-SP Differential pressure gage, range 0-5″ w.c., with set point indicator.
2006 Differential pressure gage, range 0-6.0″ w.c., minor divisions .20.
2006D Differential pressure gage, range 0-6.0″ w.c. & 0-1.5 kPa.
2008 Differential pressure gage, range 0-8.0″ w.c., minor divisions .20.
2008D Differential pressure gage, range 0-8.0″ w.c. & 0-2.0 kPa.
2010 Differential pressure gage, range 0-10″ w.c., minor divisions .20.
2010-SP Differential pressure gage, range 0-10″ w.c., with set point indicator.
2010AV Differential pressure gage, range 0-10″ w.c., velocity 2000-12500 FPM.
2010D Differential pressure gage, range 0-10″ w.c. & 0-2.5 kPa.
2015 Differential pressure gage, range 0-15″ w.c., minor divisions .50.
2015D Differential pressure gage, range 0-15″ w.c. & 0-3.7 kPa.
2020 Differential pressure gage, range 0-20″ w.c., minor divisions .50.
2025 Differential pressure gage, range 0-25″ w.c., minor divisions .50.
2030 Differential pressure gage, range 0-30″ w.c., minor divisions 1.0.
2040 Differential pressure gage, range 0-40″ w.c., minor divisions 1.0.
2050 Differential pressure gage, range 0-50″ w.c., minor divisions 1.0.
2060 Differential pressure gage, range 0-60″ w.c., minor divisions 2.0.
2080 Differential pressure gage, range 0-80″ w.c., minor divisions 2.0.
2100 Differential pressure gage, range 0-100″ w.c., minor divisions 2.0.
2150 Differential pressure gage, range 0-150″ w.c., minor divisions 5.0.
2201 Differential pressure gage, range 0-1 psi, minor divisions .02.
2202 Differential pressure gage, range 0-2 psi, minor divisions .05.
2203 Differential pressure gage, range 0-3 psi, minor divisions .10.
2204 Differential pressure gage, range 0-4 psi, minor divisions .10.
2205 Differential pressure gage, range 0-5 psi, minor divisions .10.
2210 Differential pressure gage, range 0-10 psi, minor divisions .20, MP option standard.
2215 Differential pressure gage, range 0-15 psi, minor divisions .50, MP option standard.
2220 Differential pressure gage, range 0-20 psi, minor divisions .50, MP option standard.
2230 Differential pressure gage, range 0-30 psi, minor divisions 1.0, HP option standard.
2300-0 Differential pressure gage, range 0.25-0-0.25″ w.c., minor divisions .01, calibrated for vertical scale position.
2300-100PA Differential pressure gage, range 50-0-50 Pa, minor divisions 2.0, calibrated for vertical scale position.
2300-10CM Differential pressure gage, range 5-0-5 cm w.c., minor divisions .20.
2300-120PA Differential pressure gage, range 60-0-60 Pa, minor divisions 2.0.
2300-1KPA Differential pressure gage, range 0.5-0-0.5 kPa, minor divisions .02.
2300-20MM Differential pressure gage, range 10-0-10 mm w.c., minor divisions .50, calibrated for vertical scale position.
2300-250PA Differential pressure gage, range 125-0-125 Pa, minor divisions 5.0.
2300-30CM Differential pressure gage, range 15-0-15 cm w.c., minor divisions 1.0.
2300-3KPA Differential pressure gage, range 1.5-0-1.5 kPa, minor divisions .10.
2300-4CM Differential pressure gage, range 2-0-2 cm w.c., minor divisions .10.
2300-500PA Differential pressure gage, range 250-0-250 Pa, minor divisions 10.0.
2300-60PA Differential pressure gage, range 30-0-30 Pa, minor divisions 2.0, calibrated for vertical scale position.
2301 Differential pressure gage, range 0.5-0-0.5″ w.c., minor divisions .02.
2302 Differential pressure gage, range 1-0-1″ w.c., minor divisions .05.
2304 Differential pressure gage, range 2-0-2″ w.c., minor divisions .10.
2310 Differential pressure gage, range 5-0-5″ w.c., minor divisions .20.
2320 Differential pressure gage, range 10-0-10″ w.c., minor divisions .50.
2330 Differential pressure gage, range 15-0-15″ w.c., minor divisions 1.0.
