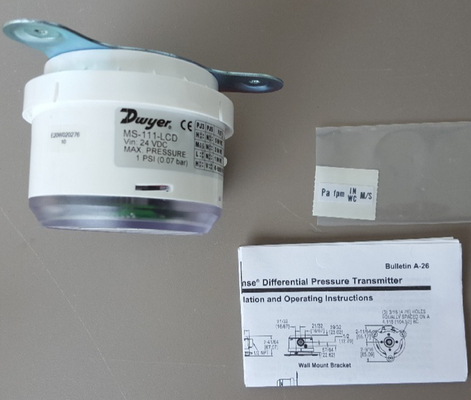

MS-111-LCD Dwyer Magnesense Differential Pressure Transmitter

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRange | 1 PSI | Mounting | Wall Mounting |
---|---|---|---|
Application | Industries | Voltage | 24V |
Response Time | 300 Msec | ||
High Light | MS-111-LCD,MS-111-LCD Differential Pressure Transmitter,Dwyer Magnesense Differential Pressure Transmitter |
Temperature Limits | 0 to 150°F (-18 to 66°C) |
Model Number | MS-111-LCD |
Warranty | 1 year |
Customized support | OEM, ODM |
Mounting | Wall mounting |
-
Estimated Lead Time : Usually ships in 1-10 working days.
-
Manufacturer : Dwyer
-
Product No. : MS-111-LCD
-
Product Type : Magnesense Differential Pressure Transmitter
-
Model : MS-111 = 4-20 mA output, 1 in, 2 in, 5 in w.c. (250, 500, 1250 Pa) selectable ranges
-
-LCD : Units with display
-
Service : Air and non-combustible, compatible gases.
-
Wetted Materials : Consult factory.
-
Zero & Span Adjustments : Digital push button.
-
Response Time : Adjustable 0.5 to 15 sec. time constant. Provides a 95% response time of 1.5 to 45 seconds.
-
Agency Approvals : CE.
-
Weight : 0.23 Kg
-
Shipping Weight : 2 Kg
Popular models: MS-111, MS-121, MS-141, MS-311, MS-111-LCD, MS-121-LCD.
For ATEX explosion proof, AT2MS, or AT2605, 268 are optional
If you need to display units, display wind speed, display air volume, communication, you can choose to upgrade products MS2 series, MS2-W101-LCD, MS2-W111-LCD, MS-W102-LCD and so on.
The original American Dwyer MS-111-LCD differential pressure transmitter is a best-selling model in the Dwyer MS series Magnesense@ Differential Pressure transmitter, a very versatile low-cost transmitter for monitoring pressure and wind speed. The compact meter has the following advantages: inch or metric range in the field, field upgrade to LCD display, adjustable damping value of output signal (display option), and optional square root output when using pitot tubes or other similar flow sensors.
Original US Dwyer MS-111-LCD differential pressure transmitter In addition to the above advantages, magnetic induction technology also provides long term outstanding performance, hence the Magnesense@ Differential Pressure Transmitter is the complete solution for pressure and flow
