Dwyer Adps-03-2-n Adjustable Differential Pressure Switch 12A 110V 230V

  • Dwyer Adps-03-2-n Adjustable Differential Pressure Switch 12A 110V 230V
  • Dwyer Adps-03-2-n Adjustable Differential Pressure Switch 12A 110V 230V
  • Dwyer Adps-03-2-n Adjustable Differential Pressure Switch 12A 110V 230V
  • Dwyer Adps-03-2-n Adjustable Differential Pressure Switch 12A 110V 230V
Place of Origin usa
Brand Name Dwyer
Certification CCC.CE
Model Number Adps-03-2-n
Minimum Order Quantity 1
Price usd28 piece/pieces
Packaging Details carton
Delivery Time 3-5 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Dwyer Product Model ADPS-03-2-N
Max. Current 12A Max. Voltage 110/230V
High Light

Adjustable Differential Pressure Switch

,

12A Differential Pressure Switch

,

230V Differential Pressure Switch
You can tick the products you need and communicate with us in the message board.
Max. Working Pressure 40'' WC(10kpa)
Pressure range 0.2-2.0 WC(50-500PA)
Working Temperature -40 to 185℃
Warranty 1 year
Leave a Message
Max. Working Pressure 40'' WC(10kpa)
Product Description

Dwyer Adps-03-2-n Adjustable Differential Pressure Switch In Stock



The series ADPS/EDPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gage. The ADPS/EDPS is available with settings from 0.08 in w.c. (20 Pa) up to 20 in w.c. (5000 Pa). The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases. Series EDPS models meet UL508 and are constructed of plenum rated plastics. The compact size, adjustment knob and low cost make the ADPS/EDPS the perfect choice for HVAC applications.



Product Applications



  • Monitoring air filters and ventilators.
  • Monitoring industrial cooling-air circuits.
  • Overheating protection for fan heaters.
  • Monitoring flows in ventilation ducts.
  • Controlling air and fire-protection dampers.
  • Frost protection for heat exchanges.

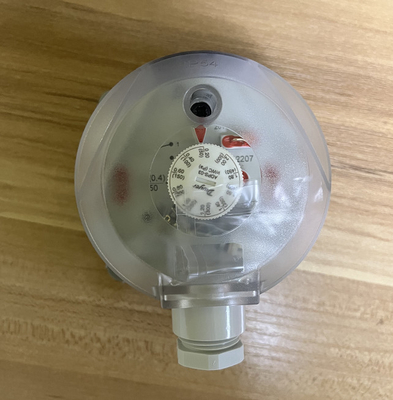

Dwyer Adps-03-2-n Adjustable Differential Pressure Switch 12A 110V 230V 0

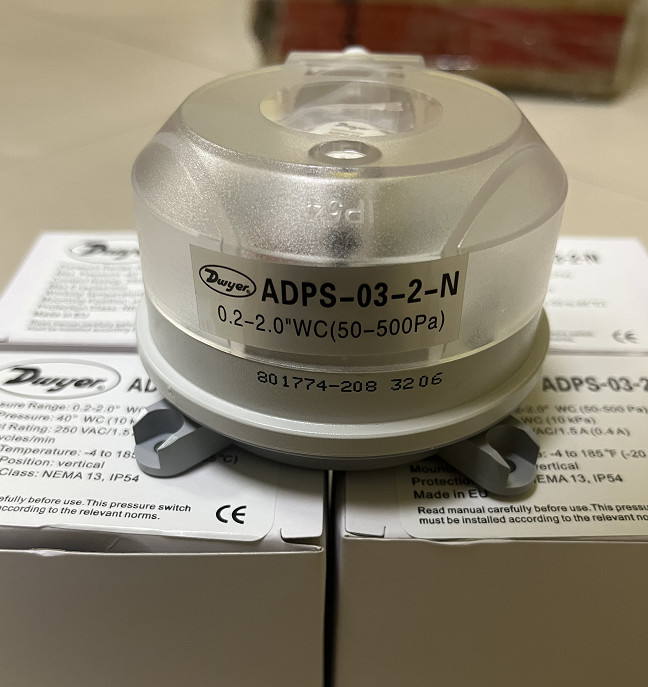

Dwyer Adps-03-2-n Adjustable Differential Pressure Switch 12A 110V 230V 1



Model Description
ADPS-03-2-N Adjustable differential pressure switch, set point range 0.20 to 2.00" w.c., M20 connection
ADPS-04-2-N Adjustable differential pressure switch, set point range 0.12 to 1.60" w.c., M20 connection
ADPS-05-2-N Adjustable differential pressure switch, set point range 0.80 to 4.00" w.c., M20 connection.
ADPS-06-2-N Adjustable differential pressure switch, set point range 2.00 to 10.00" w.c., M20 connection.
ADPS-07-2-N Adjustable differential pressure switch, set point range 4.00 to 20.00" w.c., M20 connection
ADPS-08-2-N Adjustable differential pressure switch, set point range 0.08 to 1.20" w.c., M20 connection.
