RMA-6-SSV High Accuracy Flow Meter For Air Water 20mA
| Place of Origin | USA |
|---|---|
| Brand Name | Dwyer |
| Certification | CE |
| Model Number | RMA-6-SSV |
| Minimum Order Quantity | 2 |
| Price | USD$60/PC |
| Packaging Details | Carton |
| Delivery Time | 5-8 work days |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Service | Compatible Gases And Liquids | Temperature Limit | 130°F (54°C) |
|---|---|---|---|
| Pressure Limit | 100 Psi (6.9 Bar) | Type | Variable Area Air & Gas Flowmeters |
| Product Name | Air Flowmeter | ||
| Highlight | High Accuracy Air Flow Meter 20mA,RMA-6-SSV Water Flow Meter,20mA High Accuracy Flow Meter |
||
You can tick the products you need and communicate with us in the message board.
| Wetted Materials | Body: Polycarbonate; O-ring: Neoprene and Buna-N; Metal parts: SS; Float: SS, black glass, aluminum, K monel, tungsten carbide depending on range | |
|---|---|---|
| Accuracy | RMA: 4%; RMB: 3%; RMC: 2% of FS | |
| Process Connection | RMA: 1/8"; RMB: 1/4"; RMC: 1/2" female NPT | |
| Weight | RMA: 4 oz (113.4 g); RMB: 13 oz (368.5 g); RMC: 39 oz (1105.6 g) | |
| Agency Approvals | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II) | |
| (Instrument-Sensor) Size | 0.125" | |
| (Instrument-Sensor) Type | Variable Area | |
| (Instrument-Sensor) Type of Operator | Stainless Steel Valve | |
| (Instrument-Sensor) Output Signal Type | 2" Scale | |
| (Instrument-Sensor) Span | 2 SCFH - 20 SCFH |
Product Description
4-20mA USA Dwyer Rate-Master Series Air And Water Flowmeter Dwyer RMA-6-SSV Air Flowmeter Dwyer RMC Dwyer RMB
Dwyer RMA-6-SSV Variable Area Flowmeter (Rate-Master) 2" Scale with Stainless Steel Valve,range 2-20 SCFH air (.9438-9.438 LPM),(943.8-9438 CCM). For compatible gases and liquids. Temperature limit 130 F. Pressure Limit 100 psi (6.9 bar). Accuracy 4%,Process Connection 1/8" Weight 4 oz. Wetted Materials: body is polycarbonate,O-ring is Neoprene & Buna-N,Metal Parts are Stainless Steel except for optional brass valve,Float is Stainless steel,black glass,aluminum,K monel,tungsten carbide.

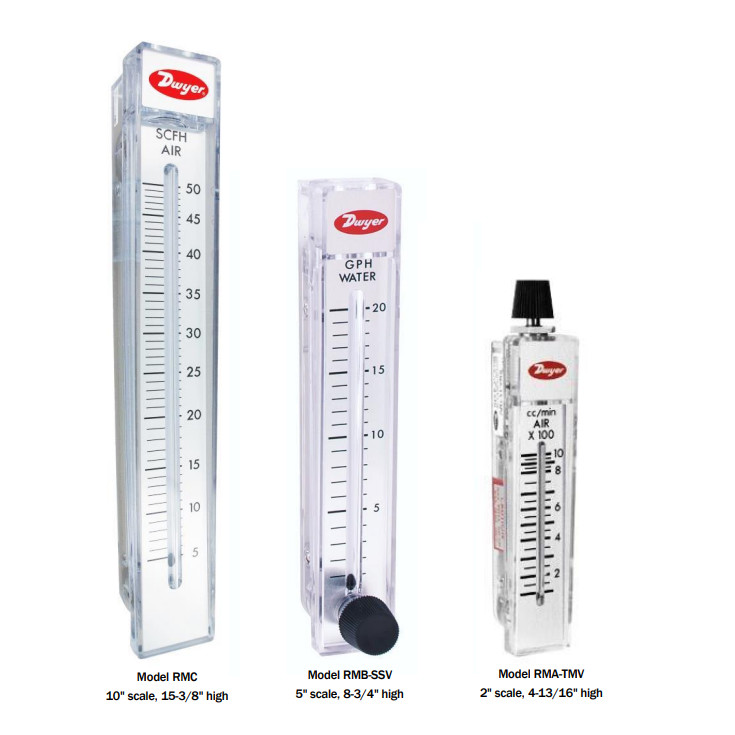

The Series RM Rate-Master® Polycarbonate Flowmeters are a line of general use, direct reading precision flowmeters suitable for both gas and liquid applications. This Series consists of 2˝ (51 mm), 5˝ (127 mm) and 10˝ (254 mm) scales that can be panel or surface mounted with optional precision metering valves. Within a given Series, the Rate-Master® flowmeter bodies can be instantly interchanged, allowing the piping to remain undisturbed, interchangeability of the ranges, and easy cleaning.
BENEFITS/FEATURES
- Eliminate the need for troublesome conversions with direct reading scales
- Reduce installation damage and cost due to stainless steel backbone that absorbs piping torque
- Long operation life with durable, shatter-proof polycarbonate body
- High repeatability enabled by precision injection molding around a precision tapered pin
- Increased reading accuracy with special integral flow guides that stabilize float movement
- Save time with instantaneous flow reading from scale graduations on both sides of the indicating tube
APPLICATIONS
- Medical equipment
- Air samplers
- Gas analyzers
- Pollution monitors
- Chemical injectors
- Cabinet purging
| Model | Description |
|---|---|
| RMA-1 | Flowmeter, range .05-.4 SCFH air, no valve. |
| RMA-1-SSV | Flowmeter, range .05-.4 SCFH air. |
| RMA-1-TMV | Flowmeter, range .05-.4 SCFH air. |
| RMA-10 | Flowmeter, range 20-200 SCFH air, no valve. |
| RMA-10-SSV | Flowmeter, range 20-200 SCFH air. |
| RMA-10-TMV | Flowmeter, range 20-200 SCFH air. |
| RMA-11 | Flowmeter, range 30-200 cc/min air, no valve. |
| RMA-11-SSV | Flowmeter, range 30-200 cc/min air. |
| RMA-11-TMV | Flowmeter, range 30-200 cc/min air. |
| RMA-12 | Flowmeter, range 50-500 cc/min air, no valve. |
| RMA-12-SSV | Flowmeter, range 50-500 cc/min air. |
| RMA-12-TMV | Flowmeter, range 50-500 cc/min air. |
| RMA-13 | Flowmeter, range 100-1000 cc/min air, no valve. |
| RMA-13-SSV | Flowmeter, range 100-1000 cc/min air. |
| RMA-13-TMV | Flowmeter, range 100-1000 cc/min air. |
| RMA-14 | Flowmeter, range 200-2500 cc/min air, no valve. |
| RMA-14-SSV | Flowmeter, range 200-2500 cc/min air. |
| RMA-14-TMV | Flowmeter, range 200-2500 cc/min air. |
| RMA-150 | Flowmeter, range 10-100 cc/min air, no valve. ±8% accuracy. |
| RMA-150-SSV | Flowmeter, range 10-100 cc/min air. ±8% accuracy. |
| RMA-150-TMV | Flowmeter, range 10-100 cc/min air. ± 8% accuracy. |
| RMA-151 | Flowmeter, range 5-50 cc/min air, no valve. ±8% accuracy. |
| RMA-151-SSV | Flowmeter, range 5-50 cc/min air. ±8% accuracy. |
| RMA-151-TMV | Flowmeter, range 5-50 cc/min air. ± 8% accuracy. |
| RMA-2 | Flowmeter, range .1-1 SCFH air, no valve. |
| RMA-2-SSV | Flowmeter, range .1-1 SCFH air. |
| RMA-2-TMV | Flowmeter, range .1-1 SCFH air. |
| RMA-21 | Flowmeter, range 1-10 LPM air, no valve. |
| RMA-21-SSV | Flowmeter, range 1-10 LPM air. |
| RMA-21-TMV | Flowmeter, range 1-10 LPM air. |
| RMA-22 | Flowmeter, range 2-25 LPM air, no valve. |
| RMA-22-SSV | Flowmeter, range 2-25 LPM air. |
| RMA-22-TMV | Flowmeter, range 2-25 LPM air. |
| RMA-23 | Flowmeter, range 5-50 LPM air, no valve. |
| RMA-23-SSV | Flowmeter, range 5-50 LPM air. |
| RMA-23-TMV | Flowmeter, range 5-50 LPM air. |
| RMA-24 | Flowmeter, range 5-70 LPM air, no valve. |
| RMA-24-SSV | Flowmeter, range 5-70 LPM air. |
| RMA-24-TMV | Flowmeter, range 5-70 LPM air. |
| RMA-25 | Flowmeter, range 10-100 LPM air, no valve. |
| RMA-25-SSV | Flowmeter, range 10-100 LPM air. |
| RMA-25-TMV | Flowmeter, range 10-100 LPM air. |
| RMA-26 | Flowmeter, range .5-5 LPM air, no valve. |
| RMA-26-SSV | Flowmeter, range .5-5 LPM air. |
| RMA-26-TMV | Flowmeter, range .5-5 LPM air. |
| RMA-3 | Flowmeter, range.2-2 SCFH air, no valve. |
| RMA-3-SSV | Flowmeter, range.2-2 SCFH air. |
| RMA-3-TMV | Flowmeter, range.2-2 SCFH air. |
| RMA-32 | Flowmeter, range 5-50 cc/min water, no valve. |
| RMA-32-SSV | Flowmeter, range 5-50 cc/min water. |
| RMA-33 | Flowmeter, range 10-110 cc/min water, no valve. |
| RMA-33-SSV | Flowmeter, range 10-110 cc/min water. |
| RMA-34 | Flowmeter, range 20-300 cc/min water, no valve. |
| RMA-34-SSV | Flowmeter, range 20-300 cc/min water. |
| RMA-4 | Flowmeter, range .5-5 SCFH air, no valve. |
| RMA-4-SSV | Flowmeter, range .5-5 SCFH air. |
| RMA-4-TMV | Flowmeter, range .5-5 SCFH air. |
| RMA-42 | Flowmeter, range 1-11 GPH water, no valve. |
| RMA-42-SSV | Flowmeter, range 1-11 GPH water. |
| RMA-43 | Flowmeter, range 2-24 GPH water, no valve. |
| RMA-43-SSV | Flowmeter, range 2-24 GPH water. |
| RMA-44 | Flowmeter, range 4-34 GPH water, no valve. |
| RMA-44-SSV | Flowmeter, range 4-34 GPH water. |
| RMA-45 | Flowmeter, range 5-50 GPH water, no valve. |
| RMA-45-SSV | Flowmeter, range 5-50 GPH water. |
| RMA-5 | Flowmeter, range 1-10 SCFH air, no valve. |
| RMA-5-SSV | Flowmeter, range 1-10 SCFH air. |
| RMA-5-TMV | Flowmeter, range 1-10 SCFH air. |
| RMA-6 | Flowmeter, range 2-20 SCFH air, no valve. |
| RMA-6-SSV | Flowmeter, range 2-20 SCFH air. |
| RMA-6-TMV | Flowmeter, range 2-20 SCFH air. |
| RMA-7 | Flowmeter, range 5-50 SCFH air, no valve. |
| RMA-7-SSV | Flowmeter, range 5-50 SCFH air. |
| RMA-7-TMV | Flowmeter, range 5-50 SCFH air. |
| RMA-8 | Flowmeter, range 10-100 SCFH air, no valve. |
| RMA-8-SSV | Flowmeter, range 10-100 SCFH air. |
| RMA-8-TMV | Flowmeter, range 10-100 SCFH air. |
| RMA-9 | Flowmeter, range 15-150 SCFH air, no valve. |
| RMA-9-SSV | Flowmeter, range 15-150 SCFH air. |
| RMA-9-TMV | Flowmeter, range 15-150 SCFH air. |
| RMB-49 | Flowmeter, range .5-5 SCFH air. ±5% accuracy. |
| RMB-49-SSV | Flowmeter, range .5-5 SCFH air. ±5% accuracy. |
| RMB-50 | Flowmeter, range 1-10 SCFH air. |
| RMB-50-SSV | Flowmeter, range 1-10 SCFH air. |
| RMB-50D | Flowmeter, range 1.2-10 SCFH/0.6-5 LPM air. |
| RMB-50D-SSV | Flowmeter, range 1.2-10 SCFH/0.6-5 LPM air. |
| RMB-51 | Flowmeter, range 2-20 SCFH air. |
| RMB-51-SSV | Flowmeter, range 2-20 SCFH air. |
| RMB-51D | Flowmeter, range 2-20 SCFH/1-9.5 LPM air. |
| RMB-51D-SSV | Flowmeter, range 2-20 SCFH/1-9.5 LPM air. |
| RMB-52 | Flowmeter, range 5-50 SCFH air. |
| RMB-52-SSV | Flowmeter, range 5-50 SCFH air. |
| RMB-52D | Flowmeter, range 4-50 SCFH/2-23 LPM air. |
| RMB-52D-SSV | Flowmeter, range 4-50 SCFH/2-23 LPM air. |
| RMB-53 | Flowmeter, range 10-100 SCFH air. |
| RMB-53-SSV | Flowmeter, range 10-100 SCFH air. |
| RMB-53D | Flowmeter, range 10-100 SCFH/5-50 LPM air. |
| RMB-53D-SSV | Flowmeter, range 10-100 SCFH/5-50 LPM air. |
| RMB-54 | Flowmeter, range 20-200 SCFH air. |
| RMB-54-SSV | Flowmeter, range 20-200 SCFH air. |
| RMB-54D | Flowmeter, range 20-200 SCFH/10-95 LPM air. |
| RMB-54D-SSV | Flowmeter, range 20-200 SCFH/10-95 LPM air. |
| RMB-55 | Flowmeter, range 40-400 SCFH air. |
| RMB-55-SSV | Flowmeter, range 40-400 SCFH air. |
| RMB-56 | Flowmeter, range 50-500 SCFH air. |
| RMB-56-SSV | Flowmeter, range 50-500 SCFH air. |
| RMB-57 | Flowmeter, range 60-600 SCFH air. |
| RMB-57-SSV | Flowmeter, range 60-600 SCFH air. |
| RMB-82 | Flowmeter, range 1-12 GPH water. |
| RMB-82-SSV | Flowmeter, range 1-12 GPH water. |
| RMB-82D | Flowmeter, range 1-12 GPH/0.06-0.76 LPM water. |
| RMB-82D-SSV | Flowmeter, range 1-12 GPH/0.06-0.76 LPM water. |
| RMB-83 | Flowmeter, range 1-20 GPH water. |
| RMB-83-SSV | Flowmeter, range 1-20 GPH water. |
| RMB-83D | Flowmeter, range 1-20 GPH/0.065-1.25 LPM water. |
| RMB-83D-SSV | Flowmeter, range 1-20 GPH/0.065-1.25 LPM water. |
| RMB-84 | Flowmeter, range 4-40 GPH water. |
| RMB-84-SSV | Flowmeter, range 4-40 GPH water. |
| RMB-85 | Flowmeter, range 10-100 GPH water. |
| RMB-85-SSV | Flowmeter, range 10-100 GPH water. |
| RMB-85D | Flowmeter, range 10-100 GPH/0.8-6.2 LPM water. |
| RMB-85D-SSV | Flowmeter, range 10-100 GPH/0.8-6.2 LPM water. |
| RMC-101 | Flowmeter, range 5-50 SCFH air. |
| RMC-101-SSV | Flowmeter, range 5-50 SCFH air. |
| RMC-102 | Flowmeter, range 10-100 SCFH air. |
| RMC-102-SSV | Flowmeter, range 10-100 SCFH air. |
| RMC-103 | Flowmeter, range 20-200 SCFH air. |
| RMC-103-SSV | Flowmeter, range 20-200 SCFH air. |
| RMC-104 | Flowmeter, range 40-400 SCFH air. |
| RMC-104-SSV | Flowmeter, range 40-400 SCFH air. |
| RMC-105 | Flowmeter, range 60-600 SCFH air. |
| RMC-105-SSV | Flowmeter, range 60-600 SCFH air. |
| RMC-106 | Flowmeter, range 100-1000 SCFH air. |
| RMC-106-SSV | Flowmeter, range 100-1000 SCFH air. |
| RMC-107 | Flowmeter, range 120-1200 SCFH air. |
| RMC-107-SSV | Flowmeter, range 120-1200 SCFH air. |
| RMC-108 | Flowmeter, range 200-1800 SCFH air. |
| RMC-108-SSV | Flowmeter, range 200-1800 SCFH air. |
| RMC-121 | Flowmeter, range 1-10 SCFM air. |
| RMC-121-SSV | Flowmeter, range 1-10 SCFM air. |
| RMC-122 | Flowmeter, range 2-20 SCFM air. |
| RMC-122-SSV | Flowmeter, range 2-20 SCFM air. |
| RMC-123 | Flowmeter, range 3-30 SCFM air. |
| RMC-123-SSV | Flowmeter, range 3-30 SCFM air. |
| RMC-134 | Flowmeter, range 2-20 GPH water. |
| RMC-134-SSV | Flowmeter, range 2-20 GPH water. |
| RMC-135 | Flowmeter, range 8-90 GPH water. |
| RMC-135-SSV | Flowmeter, range 8-90 GPH water. |
| RMC-141 | Flowmeter, range .1-1 GPM water. |
| RMC-141-SSV | Flowmeter, range .1-1 GPM water. |
| RMC-142 | Flowmeter, range .2-2.2 GPM water. |
| RMC-142-SSV | Flowmeter, range .2-2.2 GPM water. |
| RMC-143 | Flowmeter, range .4-4 GPM water. |
| RMC-143-SSV | Flowmeter, range .4-4 GPM water. |
| RMC-144 | Flowmeter, range .8-7 GPM water. |
| RMC-144-SSV | Flowmeter, range .8-7 GPM water. |
| RMC-145 | Flowmeter, range 1.2-10 GPM water. |
| RMC-145-SSV | Flowmeter, range 1.2-10 GPM water. |
