Differential Pressure Transmitter Manifold 2051CD 20mA For Gage Measurement
| Place of Origin | Singapore |
|---|---|
| Brand Name | Rosemount |
| Certification | CCC.CE |
| Model Number | 2051CD |
| Minimum Order Quantity | 1 |
| Price | usd 1500 piece/pieces |
| Packaging Details | carton |
| Delivery Time | 10-15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | Rosemounte | Output Signal | 4-20mA+HART |
|---|---|---|---|
| Model | 2051CD | Rang | 0~62.16 Kpa |
| Max Pressure | 25.0Mpa | Warranty | 1 Year |
| High Light | Differential Pressure Transmitter Manifold,Differential Coplanar Pressure Transmitter,Gage Measurement Transmitter With Manifold |
||
You can tick the products you need and communicate with us in the message board.
| Product name | differential pressure transmitter | |
|---|---|---|
| Accuracy | 0.05% | |
| Power supply | 24VDC | |
| Warranty | 1 year |
Product Description

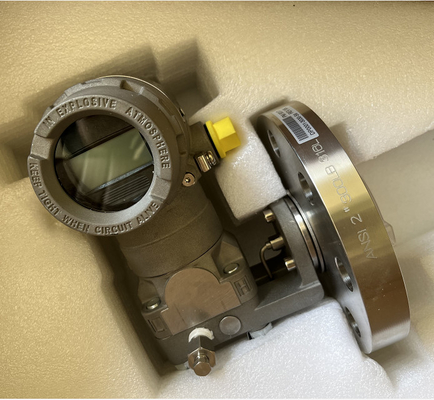

NEW ORIGINAL Rosemount Differential Pressure Flow Transmitter 2051cd In-Line Pressure Transmitter
The Rosemount 2051 Coplanar Pressure Transmitter is industry-standard for differential and gage measu-rements. This safety-certified transmitter features a Local Operator Interface with easy-to-use menus and built-in configuration buttons, allowing you to easily commission the device. Engineered with the patented coplanar technology, this device offers installation flexibility for integrated pressure, flow or level solutions. Communic-ation Protocol:4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART® . Measurement Range:Up to 2000 psi (137,9 bar) Differential, Up to 2000 psig (137,9 bar) Gage. Process Wetted Material:316L SST, Alloy C-276, Tantalum.Certifications/Approvals:SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications.
The 2051 provides reliable differential, gauge and absolute pressure measurements through a variety of output protocols, materials and process connections. Meet your pressure, level and flow requirements with the flexible Coplanar TM platform, reducing project and ongoing maintenance costs.
specification
| Brand Name | Rosemount |
| Product Name | Differential Pressure Transmitter |
| Warranty | 1 year |
| Communication Protocol | 4-20 mA HART® |
| Rang | 0~62.16 kpa |
| Max pressure | 25.0Mpa |
| Accuracy | 0.05% |
| Power supply | 24VDC |
Features Of Pressure Transmitter Manifold
- Available pre-assembled to primary elements for an installation-ready flow solution that ensures reliable performance
- Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
- Local operator interface offers easy-to-use menus and built-in configuration buttons for streamlined commissioning
- Performance up to 0.05% of span accuracy
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
