233.50 Wika Stainless Steel Pressure Gauge 1Mpa Oil Shock Pressure Gauge

Place of Origin Germany
Brand Name Wika
Certification CCC.CE
Model Number 233.50
Minimum Order Quantity 1
Price usd80 piece/pieces
Packaging Details carton
Delivery Time 5-10 Work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Wika Model 232/233.50
Pressure Range 0-10(kPa) Size 100mm
High Light

233.50 Wika Stainless Steel Pressure Gauge

,

1Mpa oil shock pressure gauge

,

1Mpa micro differential pressure gauge

You can tick the products you need and communicate with us in the message board.
Brand name Wika
Model 232/233.50
Size 100mm
Accuracy 1.0
Material stainless steel
Warranty 1 year
Leave a Message
Brand name Wika
Product Description



Wika Stainless steel shock pressure gauge 233.50, 100mm dial pressure oil gauge



product description

Wika high quality Bourdon tube pressure gauges are designed for the process industry. The use of premium stainless steel materials and rugged design is geared towards chemical and process industry applications. Therefore, it is suitable for liquid and gas media, and corrosive environment.

Degree fan. For.. 0.06 to 0.160 MPa [0.10T0.200000psj] to ensure the measurement range required for various applications.

WIKA manufactures and certifies pressure gauges according to EN 837-1 and ASME B40.100. The instrument has the safety function of blowout preventer, and there is a pressure relief device on the back of the housing. In case of failure, overpressure can be released from here.



Model 233.50 shell filling is suitable for high dynamic pressure load and vibration field platform.

specification

Brand name Wika
Model 233.50
Scope of application micro differential pressure measurement
maximum working pressure 1Mpa
Accuracy 1.0
Size 100mm
Pressure Range 0-10(kPa)
Material stainless steel

Application

  • Used for measuring non-viscous or non-crystalline gases and corrosive liquids, also suitable for corrosive environments.
  • Chemical and petrochemical industries, oil and gas industry, power engineering, and water and sewage treatment.
  • Machinery manufacturing and general equipment manufacturing.



features

  • Excellent cyclic load stability and impact resistance.
  • Case filled with liquid (Model 233.50), suitable for high dynamic pressure loads and vibration applications.
  • All stainless steel construction.
  • Scale range.. .0.06 to 0.160 MPa [..10 to 0.20,000 psi].

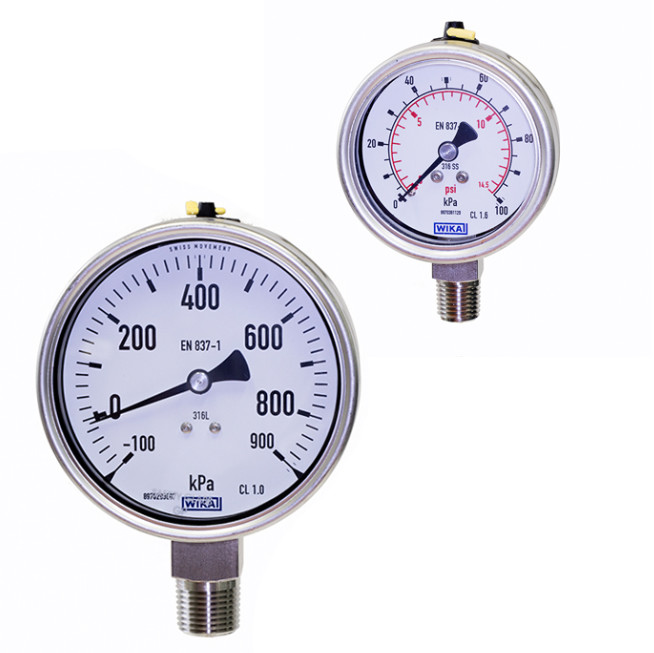

233.50 Wika Stainless Steel Pressure Gauge 1Mpa Oil Shock Pressure Gauge 0

The working principle of Wika pressure gauge: through the elastic deformation of the sensitive element (Bourdon tube, diaphragm box, bellows) in the table, and then the pressure deformation is transmitted to the pointer by the conversion mechanism of the movement in the table, causing the pointer to rotate to show the pressure.
When measured medium components through interfaces into the elastic sensitive element (bourdon tube) lumen, elastic sensitive element under the action of pressure measured medium, the free end to end will produce the corresponding displacement, the corresponding displacement by gear transmission amplification mechanism and institutions is converted to the corresponding Angle displacement of synchronization with the Angle displacement meter pointer will dial in the number of devices engraved line indicates the measured The pressure of the medium.



Wika series products, such as ordinary pressure gauge, stainless steel pressure gauge, diaphragm pressure gauge, pressure transmitter, oil-filled pressure gauge, bimetal thermometer, gas expansion thermometer, temperature transmitter and so on, can meet all walks of life, all kinds of environment, good quality, excellent price. Weka is a well-known brand in the instrument industry and has great influence in the industry. WIKA products are extremely rich, and mature technology, with reliable quality, good cost performance and perfect after-sales service system, widely used in various industries.
