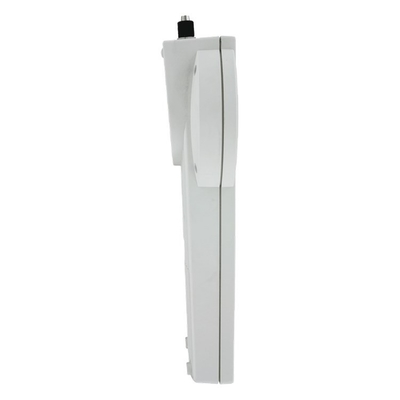

HM35 Differential Pressure Gauge Digital Handheld Pressure Gauge
| Place of Origin | USA |
|---|---|
| Brand Name | Dwyer |
| Certification | CCC CE |
| Model Number | HM3531DLF300 |
| Minimum Order Quantity | 1 |
| Price | $500-$1200/PC |
| Packaging Details | 100% original package |
| Delivery Time | 14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3 Months | Customized Support | OEM |
|---|---|---|---|
| Emperature Limits | 32 To 122°F (0 To 50°C). | Wetted Materials | 18/8 Stainless Steel. |
| Storage Temperature | -4 To 140°F (-20 To 60°C). | Case Protection | IP54 (NEMA 3). |
| High Light | HM35 Differential Pressure Gauge,Digital Handheld Pressure Gauge,HM35 Digital Pressure Meter |
||
You can tick the products you need and communicate with us in the message board.
| Model | HM3531DLF300 | |
|---|---|---|
| Model | HM3531DLH300 | |
| Model | HM3531DLG300 | |
| Service: | Air and compatible gases. |
Product Description
SERIES HM35 PRECISION DIGITAL PRESSURE MANOMETER
Up to 0.05% Accuracy, Graphical Display, Data Logging Capability
HM35 series hand-held digital display precision pressure gauge can reliably monitor and collect differential pressure data, which is used in many important occasions. It can measure absolute pressure, differential pressure and gauge pressure with an accuracy of 0.05%. It can collect and store 10742 sets of data, and can transmit the data to the computer. The large display can show data trends and peaks and valleys.
The HM35 comes with a calibration certificate, which can be used as a calibration standard for other pressure gauges. *Suitable for laboratories, calibration centers, or other occasions where precise measurements are required.
|
Power Requirements: (3) 1.5 V AA alkaline batteries, installed functional, user replaceable. Can operate on 6 to 9 VDC external power.
Service: Air and compatible gases.
Wetted Materials: 18/8 stainless steel.
Accuracy: (Includes linearity, hysteresis, and repeatability): Depending on model. ±0.20% full-scale ±1 digit; ±0.10% full-scale ±1 digit; ±0.05% full-scale ±1 digit.
Temperature Limits: 32 to 122°F (0 to 50°C).
Storage Temperature: -4 to 140°F (-20 to 60°C).
Humidity: Maximum 95% RH non-condensing.
Display: Graphical back lit LCD. 128 x 64 points.
Memory: 10,742 readings. Recording intervals adjustable from 1 second to 24 hours or manual.
Case Protection: IP54 (NEMA 3).
Agency Approvals: CE.
Current Consumption: 25 mA without back lit display, IR, or buzzer.
Weight: 10.5 oz (300 g).
Process Connections: Hose 4/6 mm or 1/8" NPT.
|
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Southeast Asia(40.00%),Domestic Market(35.00%),Africa(15.00%),Mid East(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Differential pressure gauge,Red oil differential pressure gauge,Pressure differential pressure transmitter,Level controller,Float switch
4. why should you buy from us not from other suppliers?
We have excellent and experienced foreign trade team and other teams to provide you with the best and professional services. Our products are sold all over the world as best-selling products and high reputation products. We aim to maintain a high standard
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
