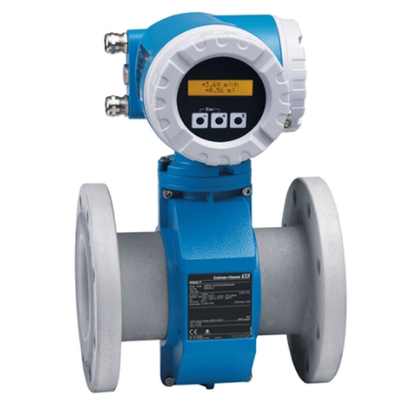

Endress Hauser Electromagnetic Flow Meter 10W 50W Digital Type
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Type||Electromagnetic Flow Meter, Flow Meter||Nominal Diameter Range||DN15 ~ DN300|
|Measuring Principle||Electromagnetic||Ambient Temperature Range||-40 To +60 °C|
Endress Hauser Electromagnetic Flow Meter,
Electromagnetic Flow Meter 10W 50W,
Digital Flow Meter 10W 50W
100% New Original Endress+Hauser 10W/50W electromagnetic Flow Meter
|Wetted materials||Liner: polyurethane; hard rubber|
|Measuring range||9 dm3/min to 110 000 m3/h (2.5 gal/min to 700 Mgal/day)|
|Max. measurement error||±0,5% o.r. ± 2 mm/s (±0,5% o.r. ± 0,08 in/s|
|Max. process pressure||PN 40, Class 300, 20K|
|Medium temperature range||'0 to +80 °C (+32 to +176 °F), –20 to +50 °C (–4 to +122 °F)|
|Ambient temperature range||–40 to +60 °C (–40 to +140 °F)|
|Outputs||4...20mA + pulse,-/status (configurable)|
- Long term safe and reliable operation - all welded sensors are very strong.
- Energy-saving flow measurement - Cross section consistent with pipe, no pressure loss.
- Maintenance-free - no moving parts.
- Economy - Designed for ease of use and direct integration.
- The operation safety display module provides simple and readable process information.
- Fully compliant with industry standards -IECE/EN/NAMUR.
Flexible engineering – sensor with fixed or lap-joint process connections. Reliable measurement – accurate measured values even with 0 x DN inlet run. Maintenance‐free – no moving parts.
International drinking water approvals. Degree of protection IP68 (Type 6P enclosure). 2-line display with push buttons.
Cost-effective – designed for easy applications and direct integration. Safe operation – display provides easily readable process information. Fully industry-compliant – IEC/EN/NAMUR.
Device as compact or remote version. HART.
The sensor has a protection rating of IP68(6P) and is equipped with a very economical transmitter. 2 lines show that the equipment with keys can be divided into two types of HART with one type or divided type.
Flowmeter for basic water and wastewater applications with a highly cost-efficient transmitter.
