Endress Hauser PMD75 Differential Pressure Transmitter Manifold With Metal Sensor

Place of Origin China
Brand Name Endress Hauser
Certification CCC.CE
Model Number PMD75-AAA7CB1DAAU
Minimum Order Quantity 1
Price usd800 piece/pieces
Packaging Details carton
Delivery Time 3-5 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Differential Pressure Transmitter Order Code PMD75-21C0/2J0
MWP 160 Bar Output 4-20 MA Hart
High Light

Pressure Transmitter Manifold With Metal Sensor

,

PMD75 Differential Pressure Transmitter

,

160bar Differential Pressure Transmitter

You can tick the products you need and communicate with us in the message board.
Reference Accuracy Standard: 0.05%
Process temperature -40°C...85°C
Ambient temperature -50°C...85°C
Measuring cell 10 mbar...250 bar
Max. Turn down 100:1
Process connection 1/4-18NPT RC1/4"
Leave a Message
Reference Accuracy Standard: 0.05%
Product Description

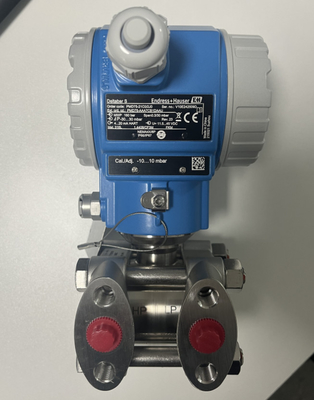

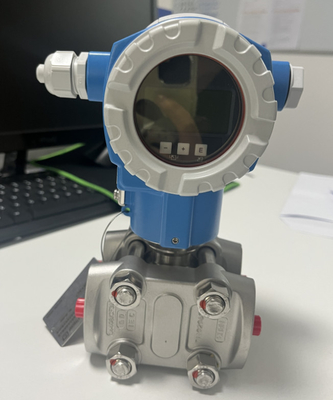

Endress Hauser E+H PMD75 Differential pressure transmitter with metal sensor for measurement of pressure differences

The Deltabar PMD75 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is used in all industries for continuous measurement in liquids, vapors and gases. The 3-key operation enables simple and reliable commissioning and operation. The integrated HistoROM data module allows easy management of process and device parameters. Designed according to IEC 61508 for use in SIL2/3 safety applications.



For level, volume or mass measurement in liquids, differential pressure monitoring as well as flow measurement (volume or mass flow) in conjunction with primary elements in gases, vapors and liquids.



Benefits





  • Process connections: Threads

  • Process temperature: -40 to +85°C (-40 to +185°F)

  • Measuring ranges: 0.25mbar to 40bar (0.0036 to 600psi)

  • Accuracy: ±0.05%, "Platinum" ±0.035% (optional)

  • International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals

  • Best accuracy, reproducibility and long-term stability

  • Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508

  • Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Cost savings with modular concept for easy replacement of sensor, display or electronics

  • Overload-resistant up to 420bar / 42MPa / 6300psi, function-monitored

  • Seamless and independent system integration (HART/PA/FF)

  •
  •
