Siemens RDG160KN S55770-T297 Room Thermostat With KNX Communications

  • Siemens RDG160KN S55770-T297 Room Thermostat With KNX Communications
  • Siemens RDG160KN S55770-T297 Room Thermostat With KNX Communications
  • Siemens RDG160KN S55770-T297 Room Thermostat With KNX Communications
  • Siemens RDG160KN S55770-T297 Room Thermostat With KNX Communications
  • Siemens RDG160KN S55770-T297 Room Thermostat With KNX Communications
Place of Origin China
Brand Name Siemens
Certification CE CCC
Model Number RDG160KN
Minimum Order Quantity 1
Price USD$60/PC
Packaging Details Carton
Delivery Time 5-8 work days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Net Weight (kg) 0.349 Kg Packaging Dimension 10.60 X 14.90 X 6.20
Rated Voltage AC 24 V Frequency 50/60 Hz
Temperature Range 0...49 °C Cable Length Max. 80 M
Bus Current 20 MA Humidity <95% R.h
High Light

S55770-T297 Room Thermostat

,

KNX Communications Room Thermostat

,

Thermostat Programmable Logic Controller
Leave a Message
Product Description

Siemens RDG160KN S55770-T297 Room Thermostat With KNX Communications







Room thermostats with KNX communications RDG100KN RDG160KN
– For fan coil unit applications
– For universal applications
– For use with compressor in DX type equipment
• KNX bus communication (S-mode and LTE mode)
• Backlit display
• 2P / PI / P control
• Outputs for on/off, PWM, 3-position or DC 0...10 V control
• Outputs for 3-speed, 1-speed, or DC (DC 0...10 V) fan
• 3 multifunctional inputs for keycard contact, external sensor, etc.
• Operating modes: Comfort, Economy and Protection
• Automatic or manual fan speed control
• Automatic or manual heating / cooling changeover
• Minimum and maximum limitation of room temperature setpoint
• Control depending on the room or the return air temperature
• Selectable relay output functions (RDG160KN)
• Adjustable commissioning and control parameters
• Commissioning with Synco ACS, ETS or via local HMI
• Integration into Synco
• Integration into Desigo via group addressing (ETS) or via individual
addressing
• Integration into third-party system via group addressing (ETS)
• Operating voltage:
RDG100KN: AC 230 V
RDG160KN: AC 24 V


The RDG1...KN room thermostats are designed for use with the following types of system:
Fan coil units via ON/OFF or modulating / DC control outputs:

Chilled / heated ceilings (or radiators) via ON/OFF or modulating / DC control outputs:

Compressor application via On/Off control (RDG160KN)

The RDG100KN controls ...
• One single or 3-speed fan
• One or two on/off / PWM / 3-position valve actuators
• One valve actuator and one electric heater / Radiator

The RDG160KN controls ...
• One single, 3-speed or DC 0...10 V fan
• One or two on/off valve actuators / el. Heater / radiator with DC fan
• One or two DC valve actuators / el. Heater / radiator with DC fan
• One or two DC valve actuators / el. Heater / radiator with 1 / 3-speed fan
• One on/off valve actuator, one DC valve actuator with DC fan
• 1 or 2-stage compressor in DX-type equipment, with electric heater / radiator


Specification

item
value
Place of Origin
China
Brand Name
Siemens
Model Number
RDG160KN
Net Weight (kg)
0.349 Kg
Packaging Dimension
10.60 x 14.90 x 6.20
Rated voltage
AC 24 V
Frequency
50/60 Hz
Temperature range
0...49 °C
Cable length
Max. 80 m
Bus current
20 mA
Accuracy at 25 °C
< ± 0.5 K
Storage Temperature
-25...60 °C
Humidity
<95% r.h

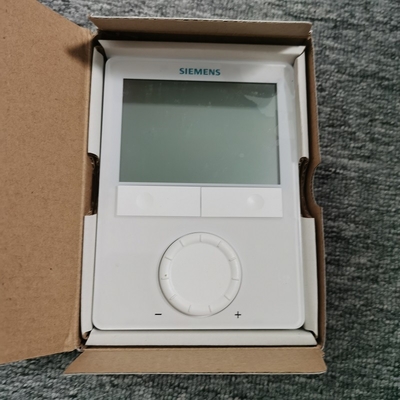

Siemens RDG160KN S55770-T297 Room Thermostat With KNX Communications 0
