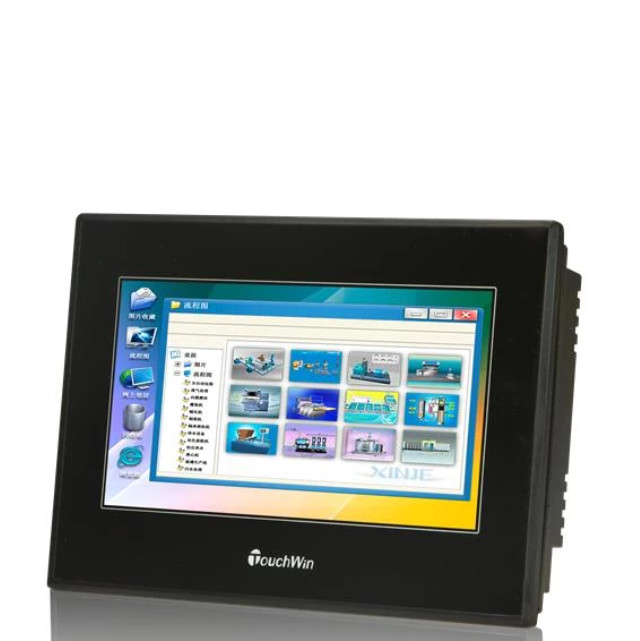

Touchwin Programmable Logic Controller 7 Inches Touching Screen TGA63S-MT

  • Touchwin Programmable Logic Controller 7 Inches Touching Screen TGA63S-MT
  • Touchwin Programmable Logic Controller 7 Inches Touching Screen TGA63S-MT
  • Touchwin Programmable Logic Controller 7 Inches Touching Screen TGA63S-MT
  • Touchwin Programmable Logic Controller 7 Inches Touching Screen TGA63S-MT
Place of Origin China
Brand Name Xinje
Certification CE
Model Number TG465-MT
Minimum Order Quantity 1
Price USD$180/PC
Packaging Details Carton
Delivery Time 5-8 work days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Touch Screen Display Single Package Size 20X20X10 Cm
Single Gross Weight 1.000 Kg Package Type Normal Export Packing
High Light

Touchwin Programming Logic Controller

,

7 InchesProgrammable Logic HMI Integrator

,

Touching Screen PLC Logic Controller
You can tick the products you need and communicate with us in the message board.
Condition 100% Original
Warranty 1 Year
Type Electronic Component
Point 16
Leave a Message
Condition 100% Original
Product Description



Xinje Touchwin Tg765s-xt/mt/ut/tga63s-mt 7 Inches And 10inches Touching Screen Tga63-mt TG465-MT

Xinjie touch screen TGA63-MT, 10.1in ten-inch color human-machine interface Integrated PLC & HMI in one unit OUCHWIN 10 inch




Product description

TGA63-MT: USB-B interface




1. 16 million true colors,resolution 1024 * 600, fine display quality
2. High speed response for download, start and run
3. Support C programming language, calculation, drawing, free format making
4. Support BMP, JPG picture displaying
5. Rich 3D gallery can make the screen more vividly
6. Support various data process modes, such as time trend map, XY trend map…
7. Self-defined animation track, many choices for component
8. Two direction transferring the data and store the recipe data, improve the efficiency





Features:

1. ARM9 400MHz CPU, 128MB ROM, 128MB RAM
2. 10.1 inch LCD, 16 million colors TFT LCD, LED backlight, resolution 1024*600
3. 2 COM ports, support RS232/RS485/RS422, 2 ports can communicate independently
4. Standard clock
5. USB-B port, support data transferring
6. 2 USB-A ports,one front port, one back port, support data backup
6. Ethernet communication (communicate with Modbus-TCP device and Siemens S7-1200)



Functions:

Specifications:

Item
TGA63-MT/UT/ET
Electric
Input voltage
DC22-DC26V
Current consumption
270mA
Momentary power off allowance
Less than 10ms
Withstand voltage
AC1000V-10mA 1 minute (signal and time)
Insulated impedance
DC500V- about 10MΩ (signal and time)
Port
Communication
RS-232/RS-485/RS422
Download
RS-232/RS-485
USB1
USB-B (USB2.0) for USB download
USB2
USB-A (USB2.0) for U-disk
Ethernet
Only for ET model
Ambient
Operate temperature
0－50℃
Storage temperature
-20-60℃
Humidity
10 %RH -90%RH (no condensation)


Noise immunity
Voltage noise: 1500Vp-p, pulse 1us, 1 minute
Surrounding air
No corrosive gas
Protection level
IP65
Screen
Type
16 million true colors
Screen size
10.1 inch
Using life
More than 50000 hours, 24 hours running when surrounding temperature is 25 ℃
Resolution
1024*600

Contrast
Adjustable
Language
Chinese, English, German, French and so on
Character
Any size and font
Touch panel
4-wire resistance mode
Memory
Screen
128MB
Construction
Cooling method
Natural air cooling
Dimension
272.2*191.7*51.2
Mounting dimension
260.2*179.7









Dimension (unit: mm)





Touchwin Programmable Logic Controller 7 Inches Touching Screen TGA63S-MT 0





Touchwin Programmable Logic Controller 7 Inches Touching Screen TGA63S-MT 1Touchwin Programmable Logic Controller 7 Inches Touching Screen TGA63S-MT 2Touchwin Programmable Logic Controller 7 Inches Touching Screen TGA63S-MT 3Touchwin Programmable Logic Controller 7 Inches Touching Screen TGA63S-MT 4



More models:

TG465-MT

TG465-XT

TG465-MT2

TG765-MT

TG765S-MT

TG765S-XT

TG765-XT-C

TG765-UT

TG765-ET

TGA62-MT

TGA63-MT

TGA62-ET

TGA63-ET

THA65-MT
